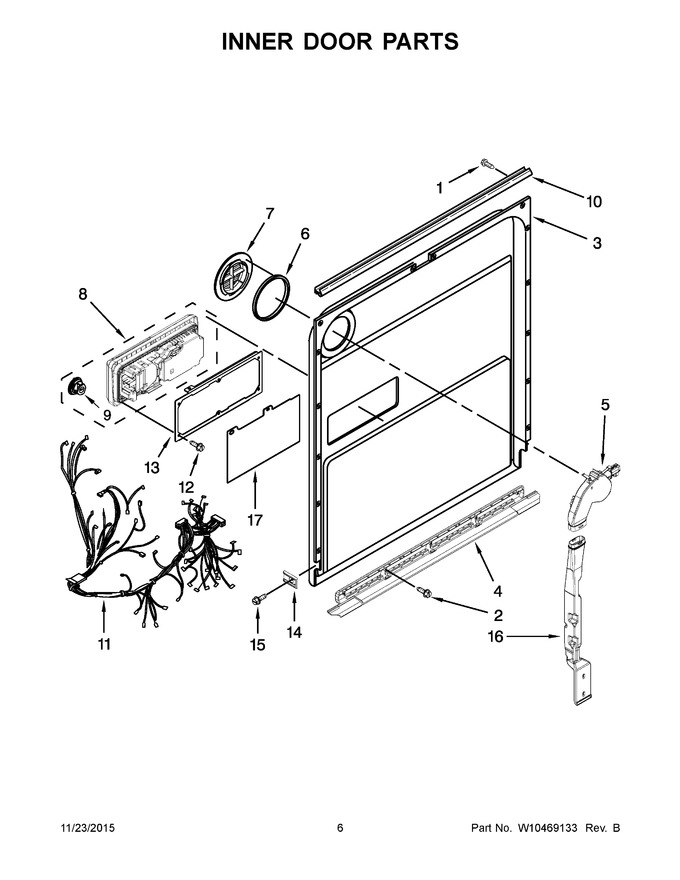

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 7.38 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 13.25 | |||||
| 3 | W10467368 | Inner Door & Mastic Assembly (also Order Item 6) (Replaces: W10195842) |
|
$ 366.35 | |||||
| 4 | WPW10497235 | Seal, Door Bottom (Replaces: W10195543) |
|
Immediately | $ 9.63 | ||||
| 5 | WPW10469574 | Vent Assembly (also Order Item 6) (Replaces: W10375833) |
|
Immediately | $ 96.22 | ||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 60.02 | ||||
| 7 | WPW10195032 | Deflector, Vent (also Order Item 6) (Replaces: W10195032) |
|
Immediately | $ 72.12 | ||||
| 8 | W11032769 | Dispenser Assembly (Replaces: W10304408) |
|
Immediately | $ 155.84 | ||||
| 9 | WPW10524920 | Cap, Rinse Aid (Replaces: W10524920) |
|
Immediately | $ 28.07 | ||||
| 10 | WPW10195007 | Seal, Console/door (Replaces: W10195007) |
|
$ 150.17 | |||||
| 11 | W10392487 | Wiring Harness |
|
$ 116.82 | |||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 13 | WPW10462232 | Bracket, Dispenser (Replaces: W10341423) |
|
$ 34.01 | |||||
| 14 | W10195837 | Barrier, Vapor |
|
$ 27.01 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 16 | WPW10195028 | Duct, Vent (black) (Replaces: W10195028) |
|
$ 72.11 | |||||
| 17 | W10385977 | Cover, Dispenser |
|
$ 27.55 |
