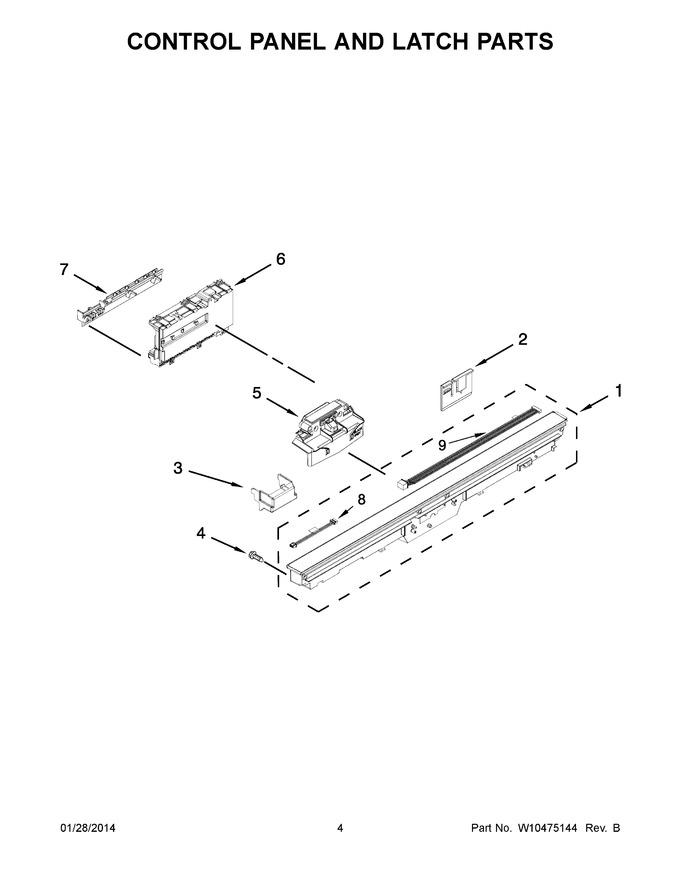

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10481146 | Console Assembly (black) (Replaces: W10481146) |
|
$ 386.21 | |||||
| 1 | WPW10481145 | Console Assembly (white) (Replaces: W10481145) |
|
$ 338.27 | |||||
| 1 | W10481147 | Console Assembly (stainless) |
|
$ 183.91 | |||||
| 2 | W11256107 | Clip. Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 3 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 28.27 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10380262) |
|
Immediately | $ 35.18 | ||||
| 6 | W10479761 | Control, Electronic (Replaces: W10529952) |
|
Immediately | $ 255.39 | ||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 27.50 | |||||
| 8 | W10528492 | Jumper, 4 Wire |
|
$ 27.10 | |||||
| 9 | WPW10195204 | Jumper, 14 Wire (Replaces: W10195204) |
|
$ 35.44 |
