SELECT A DIAGRAM

01 - Cabinet Parts

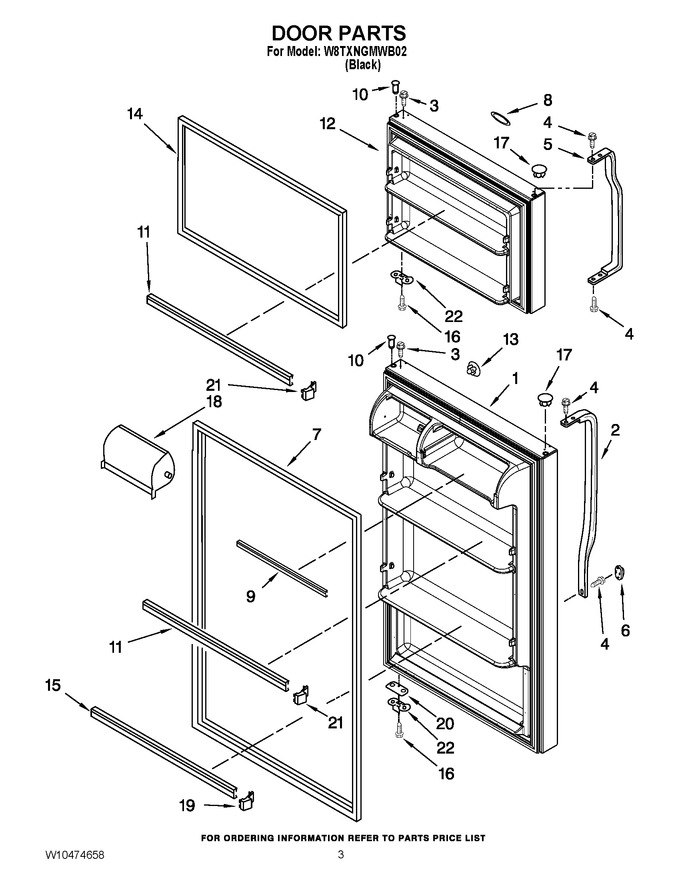

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2264750B		Refrigerator Door (includes Items 7 & 10)		Appelez-nous	-
2	WP2326169B		Handle, Refrigerator   (Replaces: 2326169B)				$ 139.28
3	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 7.53
4	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 6.80
5	2202098B		Handle, Freezer				$ 136.11
6	WP2202819B		Screw Cover, Handle   (Replaces: 2202819B)				$ 10.29
7	WP2319264B		Door Gasket, Magnetic   (Replaces: 2264723)				$ 291.47
8	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
9	W11129820		Trim, Door Shelf   (Replaces: W10234242)			Immediately	$ 114.61
10	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
11	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 108.51
12	2263254B		Freezer Door (includes Items 10 & 14)		Appelez-nous	-
13	WP2189009		Hole Plug   (Replaces: 2189009)				$ 6.85
14	WP2319263B		Door Gasket, Magnetic   (Replaces: 2264722)				$ 241.45
15	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 105.55
16	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
17	WP2212651		Hole Plug, Handle   (Replaces: 2212651)			Immediately	$ 21.79
18	WP2207942		Door Compartment   (Replaces: 2207942)			Immediately	$ 65.89
19	WP2195916K		End Cap, Trim (bottom)   (Replaces: 2195916)			Immediately	$ 11.86
20	2258681B		Shim, Door Stop				$ 40.80
21	WP2156003		End Cap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
22	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03

    View Diagram in Separate Window       Print Part List
