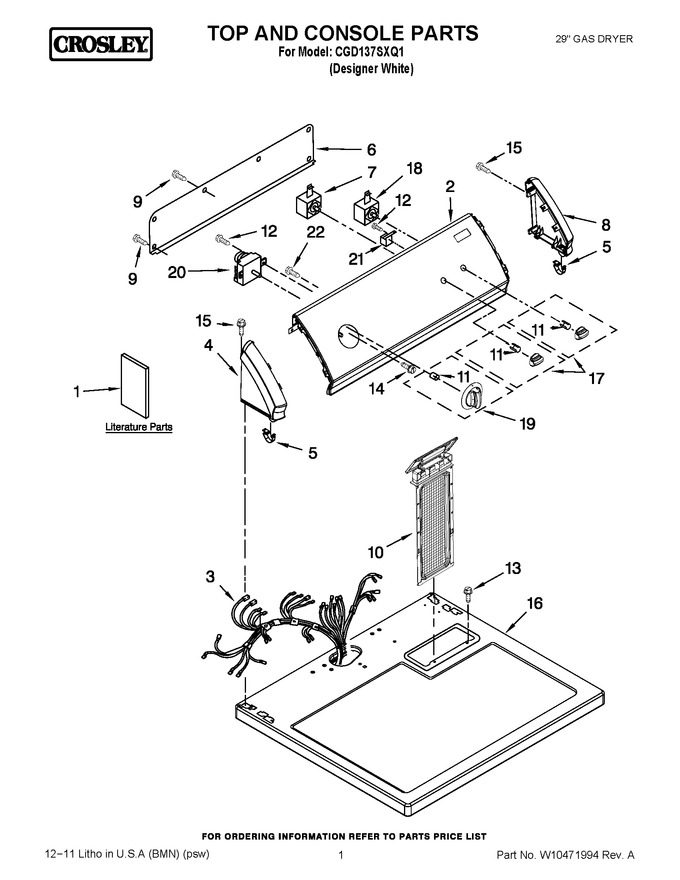

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115228		Instructions, Installation		Appelez-nous	-
1	W10185985		Wiring Diagram		Appelez-nous	-
1	W10096992		Use & Care Guide		Appelez-nous	-
2	W10115484		Control Panel & Bracket Assembly		Appelez-nous	-
3	W10186122		Harness, Wiring		Appelez-nous	-
4	WP8559502		Cap, End (l.h.)   (Replaces: 8559502)				$ 65.69
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
7	WP3399639		Switch, Rotary Temperature   (Replaces: 3399639)			Immediately	$ 118.04
8	WP8559501		Cap, End (r.h.)   (Replaces: 8559501)				$ 65.49
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw, 8-18 X 5/16   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	W10850756		Screw, Grounding   (Replaces: 8533974)				$ 7.38
15	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.43
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 314.33
17	W10317458		Knob, Selector		Appelez-nous	-
18	WPW10117655		Knob, Push-to-start   (Replaces: W10117655)			Immediately	$ 77.04
19	W10317457		Timer Knob Assembly		Appelez-nous	-
20	WPW10185981		Timer Assembly (60 Hz.)   (Replaces: W10185981)				$ 311.48
21	WP694419		Mini Buzzer   (Replaces: 694419)				$ 120.65
22	W10915367		Screw, 8-18 X 5/16   (Replaces: 3400808)		Appelez-nous	-
