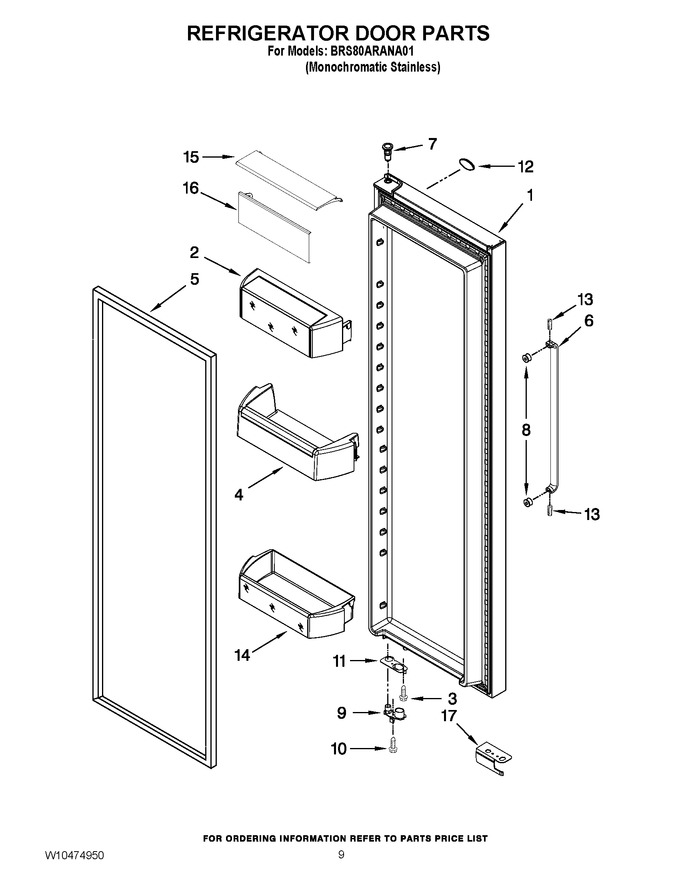

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10367473		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	W10336573		Door Compartment Assembly		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W10335221		Door Bin, Shallow				$ 35.30
5	W10355588		Door Gasket, Magnetic   (Replaces: W10249918)				$ 287.29
6	W10330802		Handle		Appelez-nous	-
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
8	W10246364		Stud, Handle		Appelez-nous	-
9	WPW10257203		Door Closer, Upper Cam   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 72.22
12	W10332630		Nameplate		Appelez-nous	-
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 16.59
14	WPW10335220		Door Bin, Gallon   (Replaces: W10335219)				$ 84.23
15	WPW10316883		Lid, Door Compartment   (Replaces: W10316883)				$ 60.90
16	W10336570		Window, Door Compartment				$ 30.07
17	W11661847		Cover, Door Stop   (Replaces: W10257218)			Immediately	$ 28.54
