SELECT A DIAGRAM

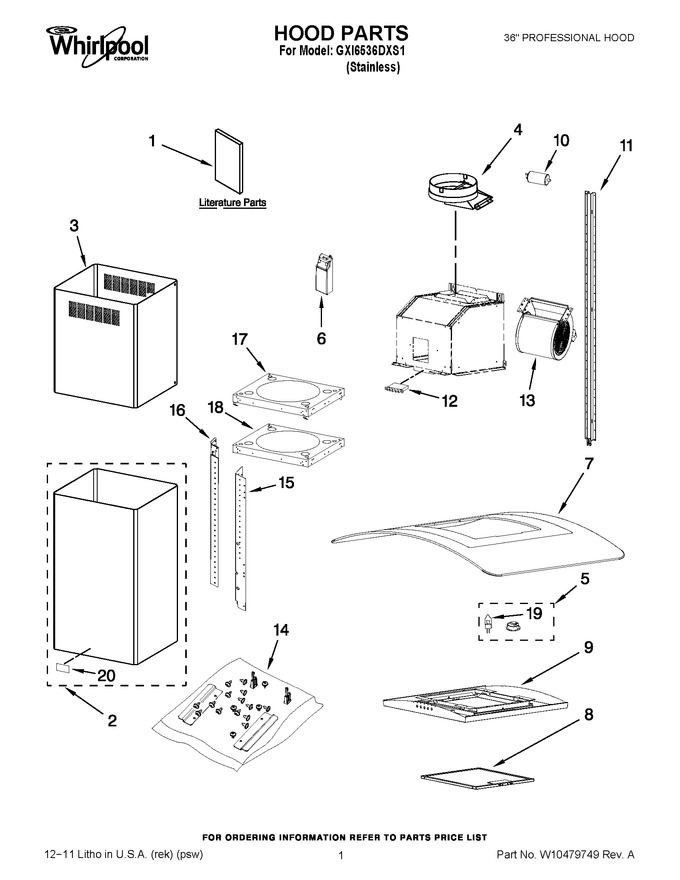

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292168		Use & Care Guide		Appelez-nous	-
2	W11321565		Cover, Lower Duct   (Replaces: W10293061)				$ 358.34
3	W10351831		Cover, Upper Duct   (Replaces: W10293049)				$ 301.22
4	W10313846		Damper Assembly		Appelez-nous	-
5	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
6	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 206.24
7	W10313849		Glass (36``)				$ 215.96
8	W10169961A		Filter, Grease   (Replaces: W10169961)			Immediately	$ 37.65
9	W10313851		Assembly, Case		Appelez-nous	-
10	W10256657		Capacitor			Immediately	$ 84.93
11	W10293054		Support, Vertical Duct Cover				$ 30.63
12	W11577780		Control, Motor   (Replaces: W10313847)				$ 228.09
13	WPW10291577		Fan Assembly   (Replaces: W10291577)				$ 485.51
14	W10313850		Hardware, Install				$ 29.04
15	W10351905		Support, Lower   (Replaces: W10313848)		Appelez-nous	-
16	W10293063		Support, Upper				$ 77.67
17	W10297052		Mount, Upper		Appelez-nous	-
18	W10293065		Mount, Lower		Appelez-nous	-
19	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 26.35
20	W11178521		Badge, Nameplate   (Replaces: W10434972)			Immediately	$ 56.82
NI	W10412939		Charcoal Filter Kit (for Non- Vented Installations Only)   (Replaces: W10294730)			Immediately	$ 66.98
NI	W11430929		Recirculation Kit (for Non-vented Installations Only)   (Replaces: W10294734)				$ 153.23
NI	W10272078		Chimney Extension Kit				$ 1,005.63
