SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts

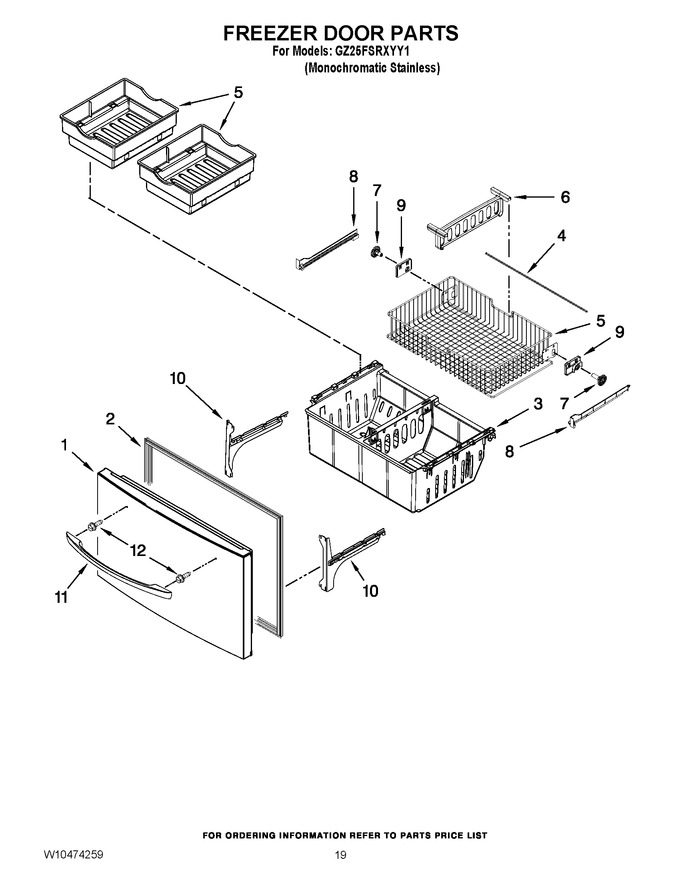

10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111SQ		Freezer Door (stainless)   (Replaces: 13107111S)				$ 994.15
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 291.24
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 163.06
4	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 29.14
5	W11218042		Basket, Upper   (Replaces: W10348249)				$ 183.09
6	W10146439		Divider, Upper				$ 29.39
7	WPW10474716		Gear (right)   (Replaces: W10158749)			Immediately	$ 29.18
7	WPW10474715		Gear (left)   (Replaces: W10146446)			Immediately	$ 29.48
8	W11489994		Rack, Side (right)   (Replaces: W10284695)				$ 21.11
8	W11489993		Rack, Side (left)   (Replaces: W10284694)				$ 21.11
9	W10348260		Mount-gear (right)				$ 80.91
9	W10348259		Mount-gear (left)				$ 80.88
10	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 147.88
10	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 149.48
11	W10223025		Handle-freezer (stainless)		Appelez-nous	-
12	WPW10288153		Screw-handle   (Replaces: W10288153)			Immediately	$ 8.69

    View Diagram in Separate Window       Print Part List
