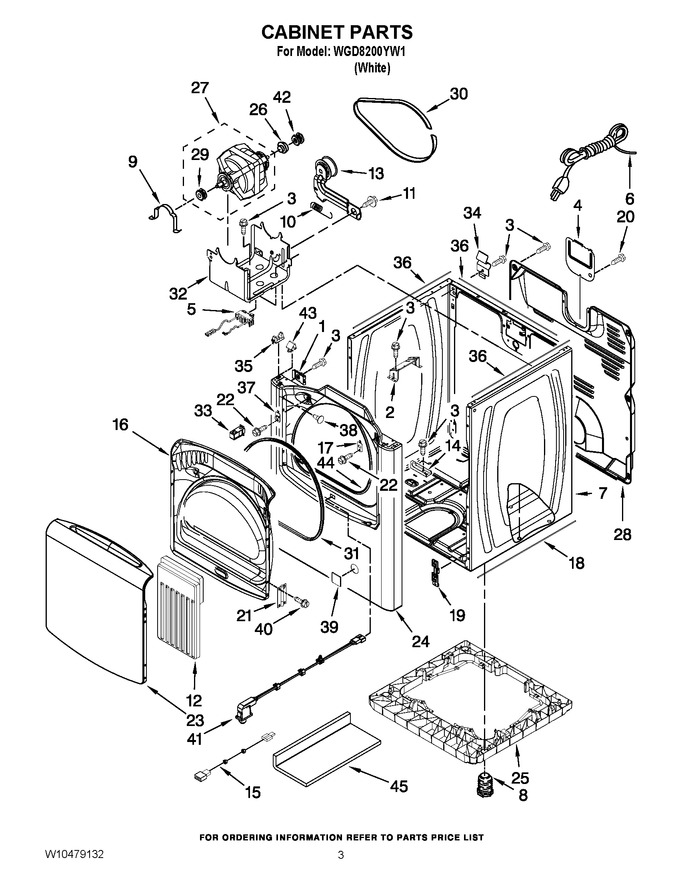

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10007520 | Clip, Ground |
|
$ 30.94 | |||||
| 2 | 8544753 | Bracket, Burner |
|
- | |||||
| 3 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 4 | W11736322 | Plate, Cover Terminal Block (Replaces: 8558833) |
|
- | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10314253) |
|
Immediately | $ 32.45 | ||||
| 6 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 113.96 | |||||
| 7 | W10223154 | Cabinet (Replaces: W10183827) |
|
$ 318.94 | |||||
| 8 | W10813918 | Foot, Dryer (Replaces: W10363894) |
|
Immediately | $ 12.33 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | 8558850 | Filler, Door |
|
- | |||||
| 13 | WPW10547292 | Pulley Assembly (Replaces: 8547160) |
|
Immediately | $ 39.58 | ||||
| 14 | W10201446 | Bracket-gas Pipe |
|
- | |||||
| 15 | W10401808 | Jumper, Door |
|
- | |||||
| 16 | 8571356 | Door Inner |
|
$ 86.30 | |||||
| 17 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 26.72 | |||||
| 18 | WPW10224768 | Seal-spill Guard (Replaces: W10224768) |
|
$ 68.12 | |||||
| 19 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 20 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.38 | |||||
| 21 | WP8565018 | Assembly, Hinge (2) (Replaces: 8579717) |
|
$ 103.81 | |||||
| 22 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.80 | |||||
| 23 | WP8571361 | Door, Outer (Replaces: 8571361) |
|
$ 165.12 | |||||
| 24 | W10111883 | Panel, Front |
|
- | |||||
| 25 | W10363887 | Riser-full |
|
- | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | WPW10448896 | Motor, Assembly 60 Hz. (Replaces: 8547170) |
|
Immediately | $ 308.78 | ||||
| 28 | 8558830 | Panel, Rear |
|
$ 139.44 | |||||
| 29 | 8544743 | Pulley, Blower |
|
$ 74.26 | |||||
| 30 | WP8547157 | Belt, Drive (Replaces: 8547157) |
|
Immediately | $ 58.91 | ||||
| 31 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 127.14 | |||||
| 32 | 8547158 | Bracket, Motor |
|
$ 65.31 | |||||
| 33 | WPW10111905 | Catch, Door Assembly (Replaces: W10111905) |
|
Immediately | $ 6.83 | ||||
| 34 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 7.39 | |||||
| 35 | WP8568303 | Locator, Snap Down (2) (Replaces: 8568303) |
|
$ 7.15 | |||||
| 36 | WPW10157932 | Foam, Cabinet (Replaces: W10157932) |
|
Immediately | $ 7.61 | ||||
| 37 | W10295405 | Assembly, Strike & Plate (Replaces: W10111906) |
|
$ 103.58 | |||||
| 38 | W10144494 | Plug, Hole |
|
$ 35.14 | |||||
| 39 | W10811916 | Plug, Front Panel (Replaces: 8564457) |
|
$ 14.85 | |||||
| 40 | WP488627 | Screw, 8-18 X 18 (Replaces: 342055) |
|
$ 7.30 | |||||
| 41 | W10318609 | Door Switch Assembly |
|
$ 68.08 | |||||
| 42 | WP8547171 | Pulley, Drum Motor (Replaces: 8547171) |
|
$ 134.69 | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 6.84 | |||||
| 44 | W10044490 | Seal, Front Panel |
|
$ 30.65 | |||||
| 45 | W11037143 | Cover, Door Switch (Replaces: W10215725) |
|
- | |||||
| NI | 49621 | Foot-optional (extended Length) (package Of 2) (not Included.) (Replaces: 279810) |
|
Immediately | $ 7.70 |
