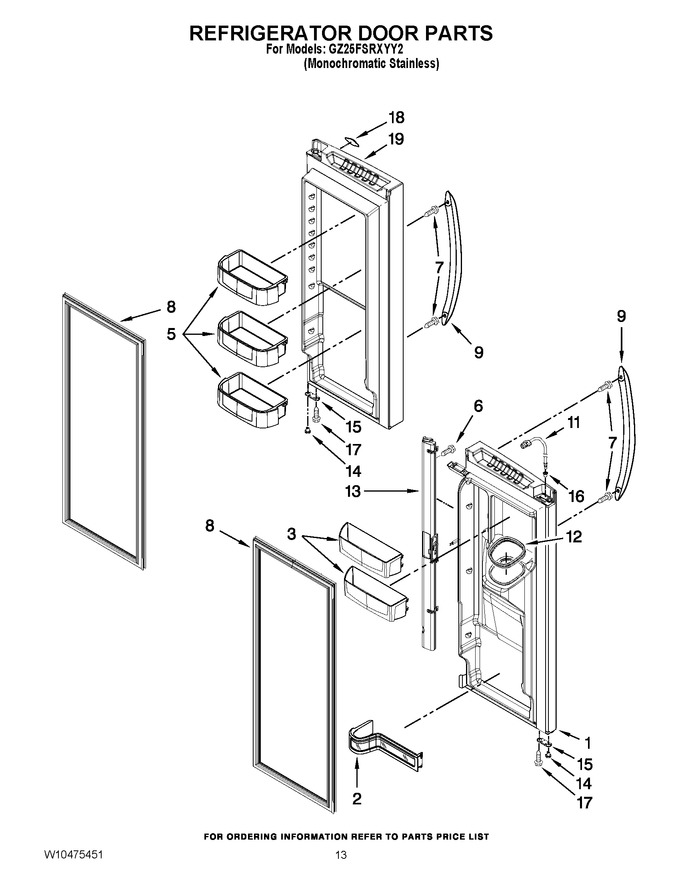

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107318S		Door, Left (stainless)		Appelez-nous	-
2	WPW10323808		Bucket-mini-lh   (Replaces: W10323808)			Immediately	$ 73.35
3	WPW10212139		Bucket, Small(2)   (Replaces: W10212139)			Immediately	$ 76.35
5	WPW10224961		Bucket, Med.(3)   (Replaces: W10224961)			Immediately	$ 85.57
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
7	WPW10288153		Screw, Handle   (Replaces: W10288153)			Immediately	$ 8.69
8	W10830274		Gasket, Door (apollo Grey)   (Replaces: W10294127)			Immediately	$ 302.28
9	W11351147		Door Handle (stainless)   (Replaces: W10223019)				$ 178.40
11	W10296451		Waterline, Door				$ 53.54
12	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 29.48
13	WPW10311757		Mullion, Door (apollo Grey)   (Replaces: W10311757)				$ 127.03
14	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
15	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 13.91
16	12996601		Clip, Bushing Wire (left Door)				$ 10.05
17	WP98165		Screw   (Replaces: 12990521)				$ 7.71
18	WPW10393264		Nameplate (apollo Grey)   (Replaces: W10393264)				$ 60.97
19	13107319SQ		Door, Right (stainless)   (Replaces: 13107319S)				$ 984.84
