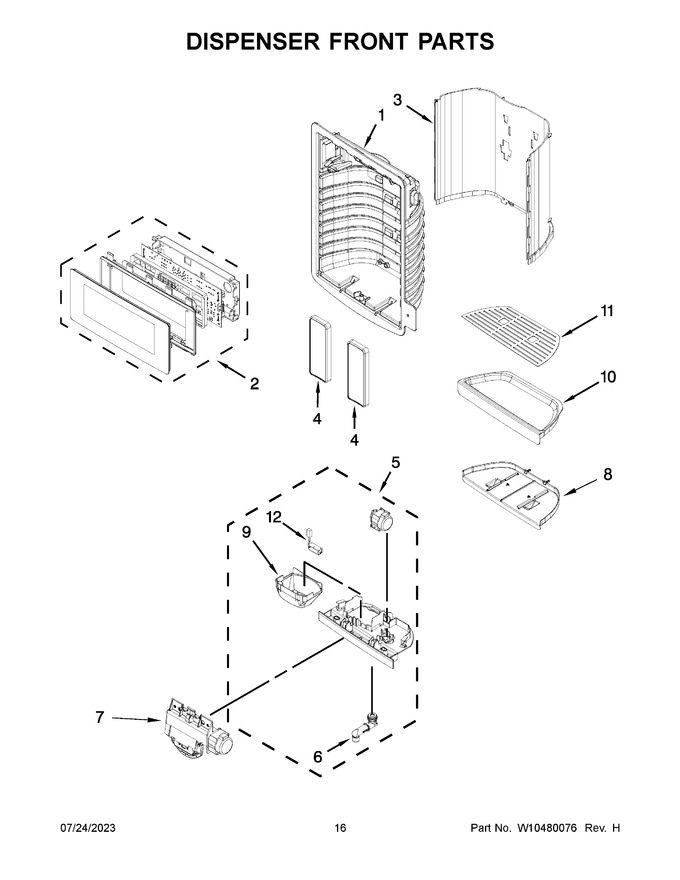

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10878993 | Assembly, User Interface (stainless) (Replaces: W10559673) |
|
$ 432.88 | |||||
| 3 | WPW10486346 | Wall, Dispenser False (grey) (Replaces: W10486346) |
|
$ 138.80 | |||||
| 4 | WPW10346924 | Assembly, Pad (grey) (Replaces: W10346924) |
|
Immediately | $ 260.69 | ||||
| 5 | WPW10347634 | Assembly, Separator (Replaces: W10347634) |
|
$ 123.26 | |||||
| 6 | WP2305235 | Spigot (Replaces: W10317267) |
|
Immediately | $ 132.36 | ||||
| 7 | W11130210 | Assembly, Ice Door (Replaces: W10347633) |
|
$ 144.50 | |||||
| 8 | W10402269 | Insert, Drip Tray (grey) |
|
Immediately | $ 62.19 | ||||
| 9 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 10 | WPW10400887 | Tray, Dispenser (grey) (Replaces: W10400887) |
|
$ 66.23 | |||||
| 11 | WPW10542708 | Grate, Drip Tray (Replaces: W10542708) |
|
$ 71.59 | |||||
| 12 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 |
