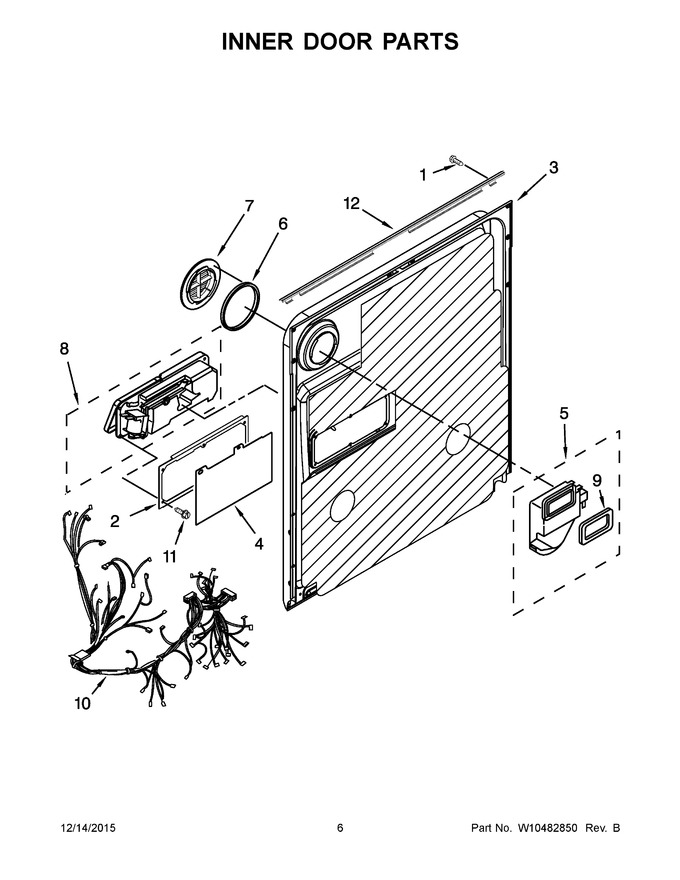

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 7.57 | ||||
| 2 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 34.01 | |||||
| 3 | W10274924 | Inner Door Assembly |
|
$ 102.52 | |||||
| 4 | W10385977 | Cover, Dispenser |
|
$ 27.55 | |||||
| 5 | WPW10428211 | Vent Assembly (also Order Item 6) (Replaces: W10274928) |
|
$ 160.14 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 57.15 | ||||
| 7 | WPW10274926 | Deflector, Vent (also Order Item 6) (Replaces: W10274926) |
|
$ 39.88 | |||||
| 8 | W11820247 | Dispenser, Assembly (Replaces: W10428217) |
|
Immediately | $ 114.90 | ||||
| 9 | WPW10428211 | Seal (Replaces: W10329927) |
|
$ 160.14 | |||||
| 10 | W10496102 | Wiring Harness (Replaces: W10442482) |
|
$ 185.56 | |||||
| 11 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 12 | W10837566 | Seal, Console/door (Replaces: W10274923) |
|
Immediately | $ 78.16 |
