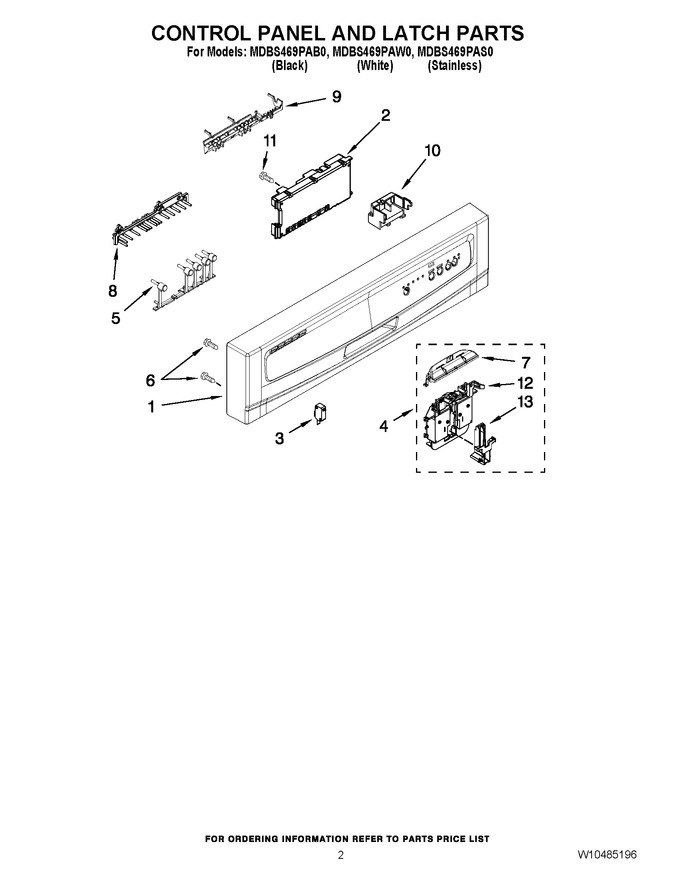

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10438282		Console (includes Active Overlay & Insert) (black)		Appelez-nous	-
1	W10438296		Console (includes Active Overlay & Insert) (white)		Appelez-nous	-
2	W10804114		Control, Electronic   (Replaces: W10438277)				$ 111.08
3	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 74.60
4	WPW10290198		Latch Assembly (black)   (Replaces: W10290198)				$ 100.80
4	WPW10290199		Latch Assembly (white)   (Replaces: W10290199)				$ 103.58
5	W10274842		Button Tree				$ 25.44
6	WP304231		Screw   (Replaces: 304231)			Immediately	$ 7.33
7	W10240155		Handle, Latch (white)				$ 122.90
7	W10240154		Handle, Latch (black)				$ 123.03
8	W10274837		Light Pipe				$ 21.08
9	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 21.03
10	W10783730		Box, Connector   (Replaces: W10401190)				$ 28.27
11	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.22
12	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 112.70
13	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 100.16
