SELECT A DIAGRAM

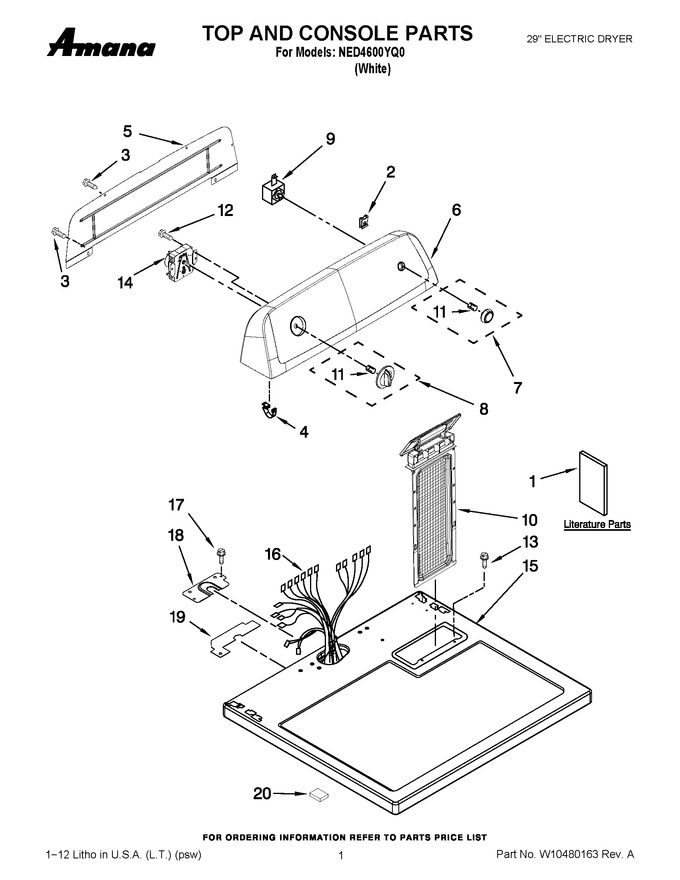

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096987 | Installation Instructions |
|
- | |||||
| 1 | W10185989 | Wiring Diagram |
|
- | |||||
| 1 | W10096991 | Use & Care Guide |
|
- | |||||
| 2 | W11213336 | Nut, 8-18 U-type (Replaces: W10298336) |
|
$ 7.32 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 5 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 119.15 | |||||
| 6 | WPW10097039 | Panel Control (Replaces: W10097039) |
|
$ 299.48 | |||||
| 7 | WPW10453948 | Knob, Push To Start (Replaces: W10453948) |
|
$ 46.20 | |||||
| 8 | WPW10711289 | Timer Knob Assembly (Replaces: W10453946) |
|
Immediately | $ 7.50 | ||||
| 9 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 32.81 | ||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W11043389 | Timer, 60 Hz. (Replaces: W10436308) |
|
$ 307.67 | |||||
| 15 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 16 | WPW10450286 | Harness, Wiring (Replaces: W10450286) |
|
$ 221.46 | |||||
| 17 | WP308685 | Screw, 10-16 X .500 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 18 | W10112578 | Bracket-harness |
|
- | |||||
| 19 | W10112603 | Seal-harness |
|
- | |||||
| 20 | 3389682 | Space, Toe Panel |
|
$ 8.31 |
