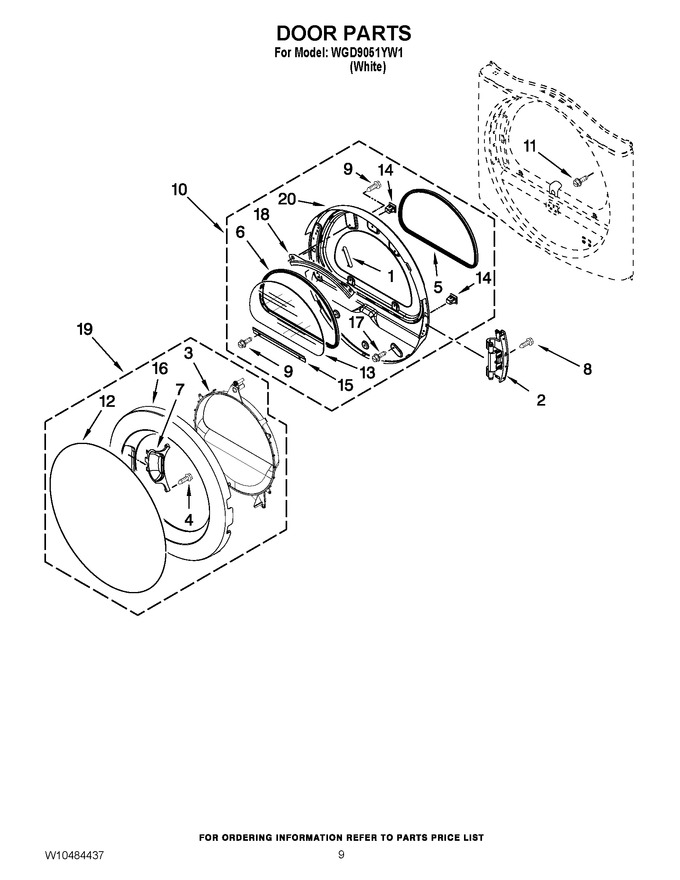

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | Label-hinge Hole Cover (Replaces: W10256915) |
|
$ 73.86 | |||||
| 2 | WPW10304672 | Door Hinge Assembly (Replaces: W10304672) |
|
Immediately | $ 209.23 | ||||
| 3 | W10283424 | Door, Intermediate |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 5 | WPW10163915 | Seal, Door (Replaces: W10163915) |
|
Immediately | $ 119.44 | ||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 25.40 | |||||
| 7 | W10215754 | Handle Pocket |
|
$ 77.36 | |||||
| 8 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 7.67 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 10 | W10270216 | Door Assembly Inner (includes Item 14) |
|
$ 141.94 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | W10215741 | Screen, Door |
|
- | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 247.28 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 15 | W10822054 | Retainer-lower (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 16 | W10215742 | Door, Outer |
|
$ 318.57 | |||||
| 17 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 18 | 8519356 | Retainer, Upper |
|
- | |||||
| 19 | W10215753 | Door Assembly Outer |
|
$ 257.27 | |||||
| 20 | W11690171 | Door, Inner (Replaces: W10363674) |
|
$ 184.04 |
