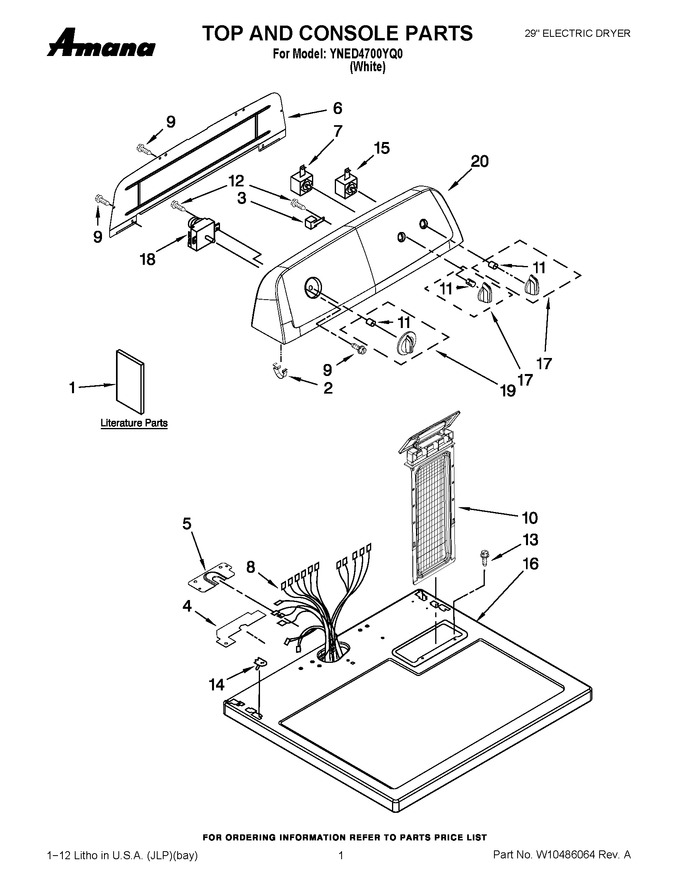

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096991		Use & Care Guide		Appelez-nous	-
1	W10115228		Installation Instructions		Appelez-nous	-
1	W10185986		Wiring Diagram		Appelez-nous	-
1	W10392463		Energy Guide		Appelez-nous	-
2	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 14.93
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	W10112603		Harness, Seal		Appelez-nous	-
5	W10112578		Harness, Bracket		Appelez-nous	-
6	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 119.15
7	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 31.23
8	W10450290		Harness, Wiring			Immediately	$ 118.05
9	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP357213		Nut, Push-in   (Replaces: 357213)				$ 6.98
15	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 79.30
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 314.33
17	WPW10453947		Knob Assembly   (Replaces: W10453947)				$ 49.28
18	WPW10436303		Timer Assembly   (Replaces: W10436303)			Immediately	$ 293.72
19	WPW10711289		Timer Knob Assembly   (Replaces: W10453946)			Immediately	$ 7.50
20	WPW10429629		Panel, Control   (Replaces: W10429629)				$ 243.28
