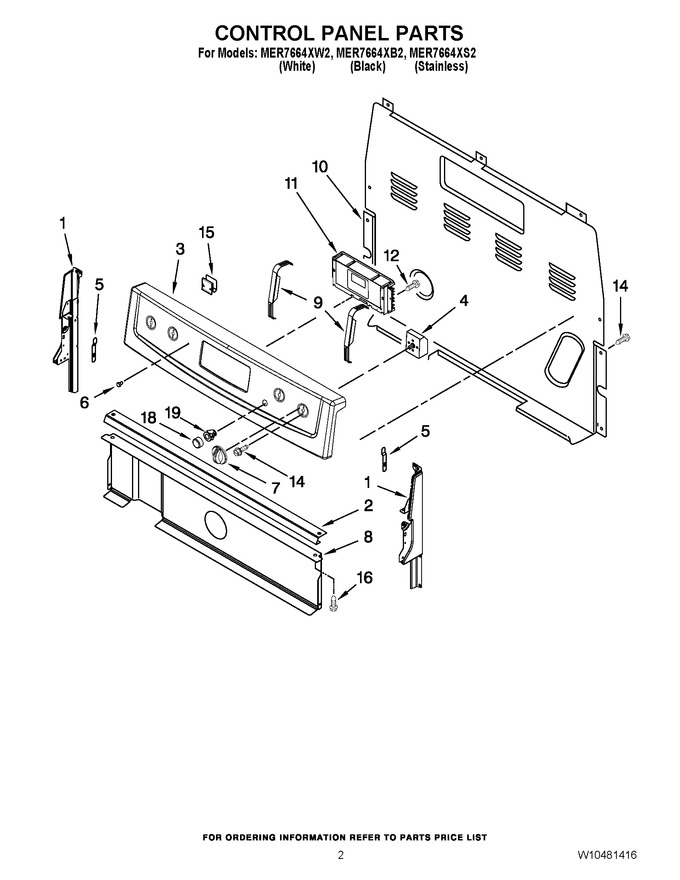

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 138.45 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 40.65 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 3 | W10315964 | Panel, Control (white) |
|
- | |||||
| 3 | W10315965 | Panel, Control (black) |
|
- | |||||
| 3 | W10315966 | Panel, Control (stainless) |
|
- | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) Rf,lf) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4 | 5500-287 | Switch, Infinite (lf,rr) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 80.08 | |||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 19.11 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WPW10476673 | Control, Range (white) (Replaces: W10271759) |
|
$ 414.94 | |||||
| 11 | WPW10476673 | Control, Range (black) (Replaces: W10271760) |
|
$ 414.94 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 15 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 |
