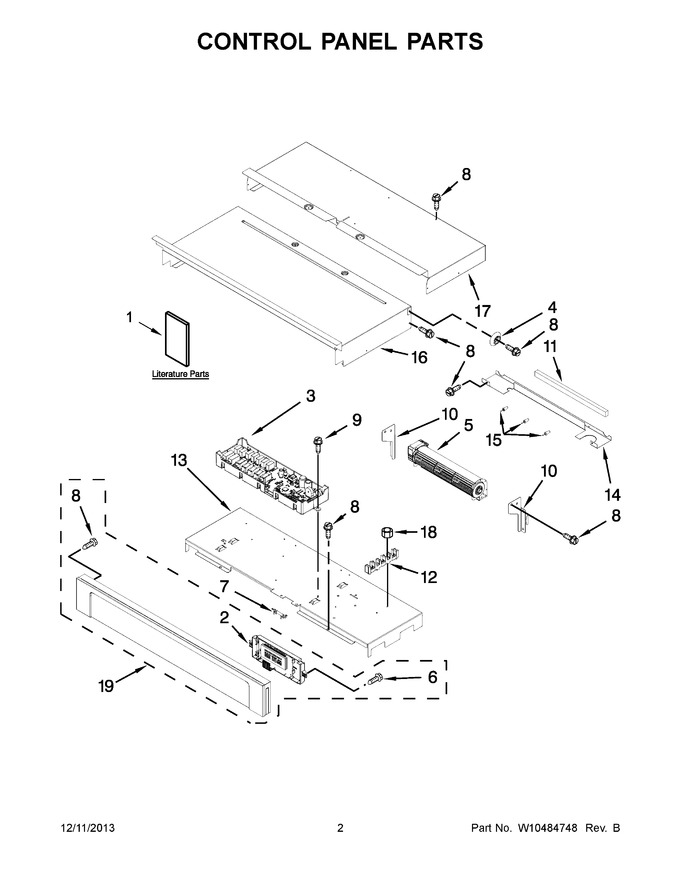

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10425193		Tech Sheet (english)		Appelez-nous	-
1	W10643344		Installation Instructions		Appelez-nous	-
1	W10760039		Miscellaneous Hardware   (Replaces: W10436188)				$ 10.95
2	W10286216		Board, Mrc2 Display		Appelez-nous	-
3	W10550511		Control Board   (Replaces: W10527853)				$ 519.89
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 7.88
7	WPW10545291		Fuse, Thermal   (Replaces: W10545291)			Immediately	$ 31.95
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
10	W10283078		Bracket, Blower Right		Appelez-nous	-
10	W10351257		Bracket, Blower Left		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper (lower Model Only)				$ 19.91
16	W10318193		Chassis, Cover Top Front 27``				$ 122.47
17	W10318195		Chassis, Cover Top Back 27``				$ 99.94
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
19	W10861733		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10363818)				$ 799.05
19	W10861731		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10363819)		Appelez-nous	-
19	W10363820		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
