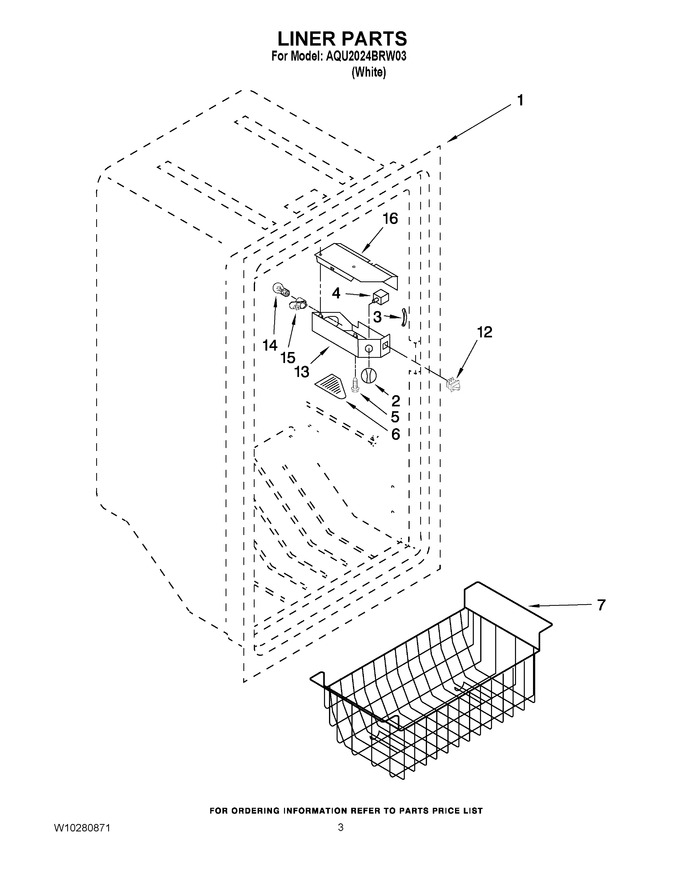

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Control Knob (Replaces: 8210348) |
|
$ 27.09 | |||||
| 3 | WP2196003 | Sleeve (Replaces: 8210246) |
|
$ 7.52 | |||||
| 4 | WP4-83053-001 | Thermostat (Replaces: 8210395) |
|
$ 229.38 | |||||
| 5 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.84 | |||||
| 6 | 8210349 | Cover, Light |
|
$ 33.01 | |||||
| 7 | 4390698 | Basket |
|
- | |||||
| 12 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 35.18 | ||||
| 13 | 8210406 | Housing, Corner |
|
- | |||||
| 14 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.17 | ||||
| 15 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 101.46 | |||||
| 16 | 8210351 | Shield, Light |
|
$ 42.03 |
