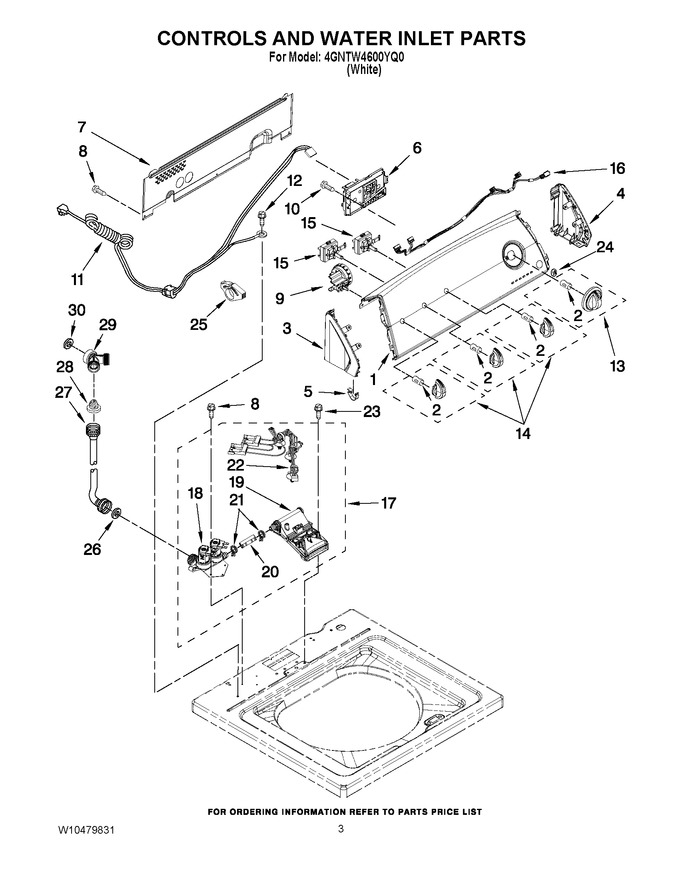

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10449049 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10251358 | Cap, End (l.h.) Includes Item 5) (Replaces: W10251358) |
|
$ 46.28 | |||||
| 4 | WPW10251355 | Cap, End (r.h.) (includes Item 5) (Replaces: W10251355) |
|
$ 46.25 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11086976 | Control Unit Assembly, Machine & Motor (Replaces: W10455313) |
|
$ 415.50 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 237.47 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10268912 | Switch, Water Level (Replaces: W10268912) |
|
$ 171.60 | |||||
| 10 | WP90767 | Screw,8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10422755 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | WPW10327522 | Knob, Timer (Replaces: W10327522) |
|
$ 45.87 | |||||
| 14 | WPW10327523 | Knob, Control (Replaces: W10327523) |
|
$ 49.62 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | W10291174 | Harness, Upper |
|
$ 228.02 | |||||
| 17 | WPW10337066 | Inlet Assembly, Water (Replaces: W10337066) |
|
$ 188.73 | |||||
| 18 | WPW10336726 | Valve, Water Mixing (Replaces: W10336726) |
|
$ 175.95 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 81.30 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 23.27 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.94 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 154.36 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 24 | WPW10251309 | Pushbutton, Start (Replaces: W10251309) |
|
Immediately | $ 68.40 | ||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 201.83 | |||||
| 26 | WP16123 | Washer, Inlet (Replaces: W10242307) |
|
$ 7.34 | |||||
| 27 | WP89503 | Hose, Inlet (hot) (Replaces: W10196191) |
|
Immediately | $ 21.68 | ||||
| 27 | WP89503 | Hose, Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 28 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 8.72 | ||||
| 29 | WPW10269488 | Connector, Y Hose (Replaces: W10269488) |
|
$ 80.68 | |||||
| 30 | WP3357450 | Washer, Hose (Replaces: 3357450) |
|
$ 10.40 |
