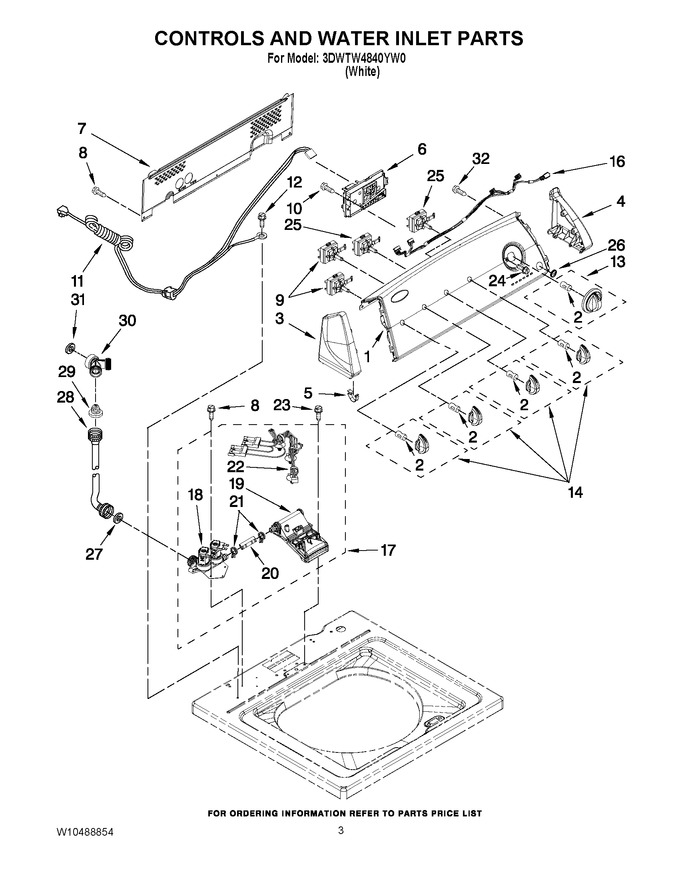

01 - Top And Cabinet Parts


02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10365093		Panel, Console   (Replaces: W10365093)				$ 265.17
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8565957		Cap, End (l.h.) (includes Item 5)   (Replaces: 8566035)				$ 58.28
4	WP8565954		Cap, End (r.h.) (includes Item 5)   (Replaces: 8566032)				$ 59.26
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
6	W10480695		Control Unit Assembly, Machine & Motor   (Replaces: W10470990)				$ 368.79
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 237.47
8	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
11	W10422755		Cord, Power		Appelez-nous	-
12	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 7.38
13	W10034750		Knob, Timer				$ 28.27
14	W10034380		Knob, Control				$ 25.06
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 155.96
17	WPW10337066		Inlet Assembly, Water   (Replaces: W10337066)				$ 188.73
18	WPW10336726		Valve, Water Mixing   (Replaces: W10336726)				$ 175.95
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 81.30
20	W10238347		Hose, Vacuum Break				$ 23.27
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 7.94
22	WPW10344775		Harness, Valve   (Replaces: W10344775)				$ 154.36
23	WP8281163		Screw 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 9.63
24	WP3400818		Screw, 8-18 X .20   (Replaces: 3400818)				$ 7.93
25	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
26	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 68.40
27	WP16123		Washer, Water Inlet   (Replaces: W10242307)				$ 7.34
28	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10196191)			Immediately	$ 21.68
28	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 21.68
29	285452A		Washer, Filter Connector   (Replaces: 353362)			Immediately	$ 8.72
30	WPW10269488		Connector, Y Hose   (Replaces: W10269488)				$ 80.68
31	WP3357450		Washer, Export Hose Adapter   (Replaces: 3357450)				$ 10.40
32	3400073		Screw, Ground		Appelez-nous	-
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	W10474959		10a Cord Adapters: (south Africa)		Appelez-nous	-
NI	WPW10476822		10a Cord Adapters: (european)   (Replaces: W10476822)				$ 72.81
NI	WPW10476820		10a Cord Adapters: (british)   (Replaces: W10476820)				$ 25.24
