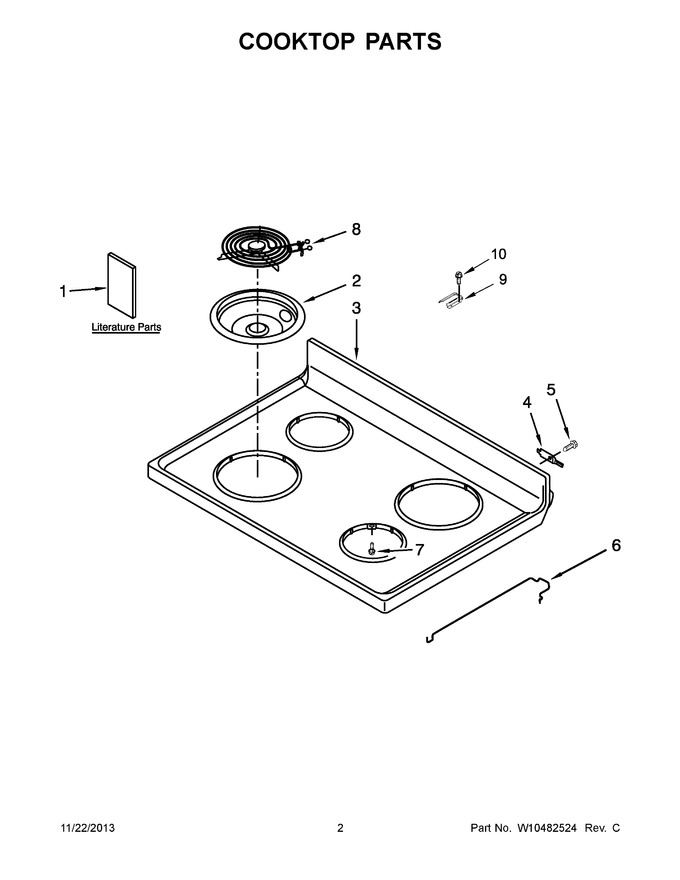

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 1 | W10394383 | Owners Manual |
|
- | |||||
| 1 | W10361708 | Sheet, Tech (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | WPW10196405 | Bowl, Drip (8``) (left Front & Right Front) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 2 | WPW10196406 | Bowl, Drip (6``) (right Rear And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 12.42 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 3 | 8272527 | Cooktop (biscuit) |
|
- | |||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 458.94 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 7.86 | ||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 8 | WPW10259868 | Element (6``) (right Front, Left Rear) (Replaces: W10259868) |
|
Immediately | $ 155.85 | ||||
| 8 | WPW10259865 | Element (8``) (left Front, Right Rear) (Replaces: W10259865) |
|
Immediately | $ 136.27 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 27.65 |
