01 - Cover Sheet
02 - Cooktop Parts

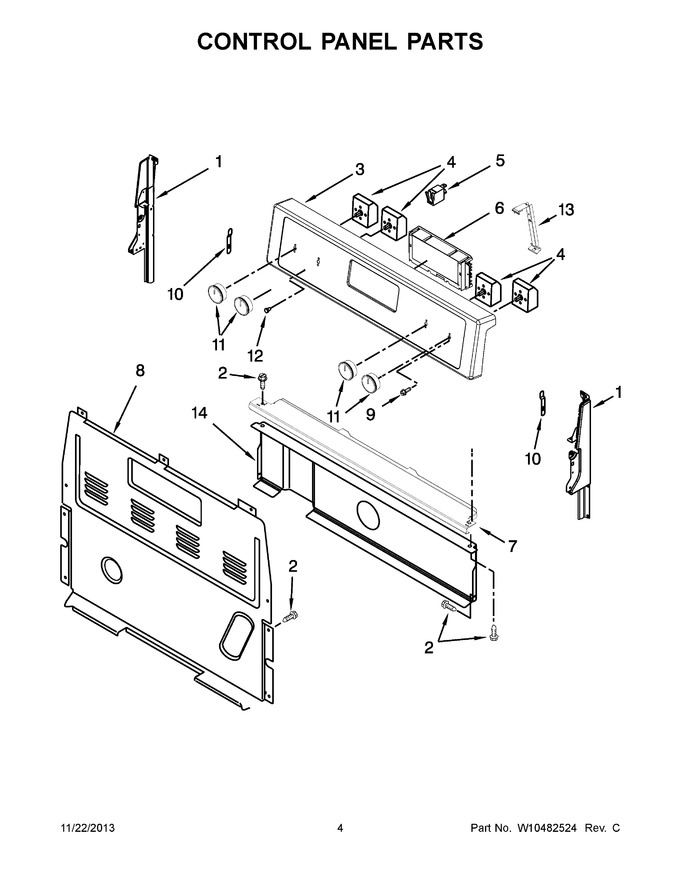

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230611 | Endcap (biscuit Left Hand) (Replaces: W10184435) |
|
- | |||||
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219664 | Endcap Black (left Hand) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219665 | Endcap Black (right Hand) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W10333936 | Panel, Console (black) |
|
- | |||||
| 3 | W10339377 | Panel, Console (stainless) |
|
- | |||||
| 3 | W10333937 | Panel, Console (white) |
|
- | |||||
| 3 | W10370114 | Panel, Console (biscuit) |
|
- | |||||
| 4 | WP3149400 | Switch, Infinite (left Front & Right Rear) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front, Left Rear) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP8523265 | Hot Surface Indicator (Replaces: W10432504) |
|
Immediately | $ 91.76 | ||||
| 6 | W10803948 | Control, Electric (lcc 190) (biscuit) (Replaces: W10413075) |
|
$ 467.91 | |||||
| 6 | W11122536 | Control, Electric (lcc 190) (stainless) (Replaces: W10424884) |
|
Immediately | $ 452.69 | ||||
| 6 | W10803948 | Control, Electric (lcc 190) (white) (Replaces: W10349613) |
|
$ 467.91 | |||||
| 6 | W10803948 | Control, Electric (lcc 190) (black) (Replaces: W10349612) |
|
$ 467.91 | |||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 8 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 11 | WPW10490037 | Assembly, Control Knob (white) (Replaces: W10490037) |
|
Immediately | $ 6.80 | ||||
| 11 | W10854421 | Assembly, Control Knob (biscuit) (Replaces: W10490039) |
|
- | |||||
| 11 | WPW10490038 | Assembly, Control Knob (black) (Replaces: W10490038) |
|
$ 19.39 | |||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 13 | W11230932 | Bracket, Mounting Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 14 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 |
