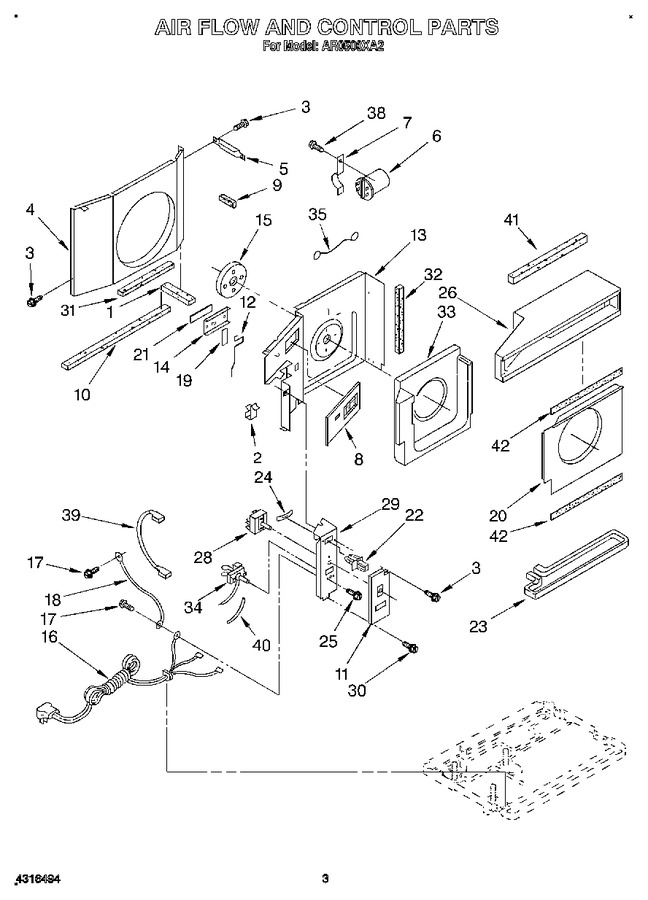

02 - Air Flow And Control


03 - Cabinet


04 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	852451		Clamp, Wiring		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	1157908		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	1162590		Capacitor, Running		Appelez-nous	-
7	1162954		Bracket, Capacitor		Appelez-nous	-
8	1162876		Screen/insul. Assembly		Appelez-nous	-
9	857923		Seal, Shroud R.s.		Appelez-nous	-
10	1158295		Seal, Strip		Appelez-nous	-
11	1157945		Insulation, Control Panel		Appelez-nous	-
12	1157947		Arm, Exhaust Door		Appelez-nous	-
13	1158284		Wall, Dividing		Appelez-nous	-
14	1158280		Door, Exhaust		Appelez-nous	-
15	1158469		Insulation, Motor		Appelez-nous	-
16	1164674		Cord, Appliance		Appelez-nous	-
17	1159222		Screw, St 8-32 X 3/8		Appelez-nous	-
18	856094		Wire, Ground		Appelez-nous	-
19	1159175		Spacer		Appelez-nous	-
20	1164655		Shroud, Evaporator		Appelez-nous	-
21	1158323		Barrier Protective		Appelez-nous	-
22	953066		Actuator, Door		Appelez-nous	-
23	1164671		Pan, Evaporator		Appelez-nous	-
24	858765		Spring, Detent		Appelez-nous	-
25	488734		Screw No.6 X 32		Appelez-nous	-
26	1164649		Hood, Air Housing		Appelez-nous	-
28	1165244		Switch, Rotary		Appelez-nous	-
29	1158285		Panel, Control		Appelez-nous	-
30	1161561		Screw, 3/8 (2)		Appelez-nous	-
31	WP854334		Seal, Condensate   (Replaces: 852063)				$ 12.55
32	WP854334		Seal, Side   (Replaces: 1158850)				$ 12.55
33	1164648		Housing, Air		Appelez-nous	-
34	950403		Control, Temperature		Appelez-nous	-
35	1160302		Wire, Lead		Appelez-nous	-
38	488624		Screw, 8 X 3/8		Appelez-nous	-
39	1158937		Wire, Jumper		Appelez-nous	-
40	475841		Sleeve, Insulator Temp. Control		Appelez-nous	-
41	1158295		Seal		Appelez-nous	-
42	1164680		Seal (2)		Appelez-nous	-
