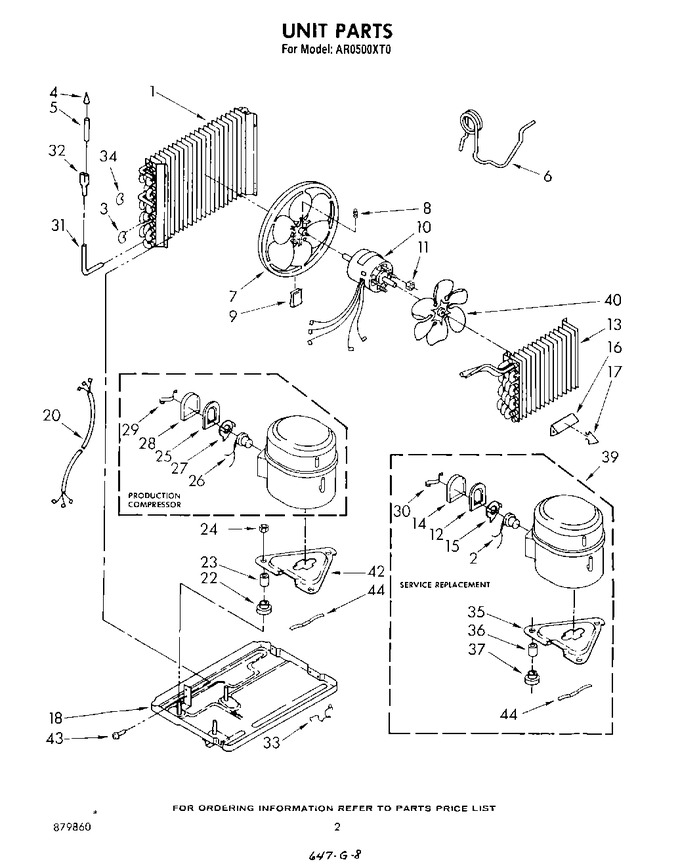

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Unit, Literature
03 - Airflow And Control
04 - Cabinet
05 - Accessory Kit
06 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1155727 | Condenser |
|
- | |||||
| 2 | 643295 | Overload |
|
- | |||||
| 3 | 708532 | Bend, Return (4) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 950961 | Tube, Restrictor (length 40.0``) |
|
- | |||||
| 7 | 1155859 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 1156163 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 643296 | Gasket, Cover |
|
- | |||||
| 13 | 950243 | Evaporator |
|
- | |||||
| 14 | 643297 | Cover, Terminal |
|
- | |||||
| 15 | 643298 | Spring, Overload |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950323 | Base |
|
$ 30.30 | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 22 | 646499 | Grommet (3) |
|
- | |||||
| 23 | 949990 | Sleeve (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 949996 | Overload |
|
- | |||||
| 27 | 949997 | Spring, Overload |
|
- | |||||
| 28 | 949999 | Cover, Terminal |
|
- | |||||
| 29 | 950005 | Retainer, Terminal Cover |
|
- | |||||
| 30 | 643299 | Retainer, Cover |
|
- | |||||
| 31 | 1155519 | Tube, 90~ Connect |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 33 | 949634 | Clip, Front Mtg. (2) |
|
- | |||||
| 34 | 708531 | Bend, Return (13) |
|
- | |||||
| 35 | 484033 | Plate, Mtg |
|
- | |||||
| 36 | 798393 | Sleeve, Mtg. |
|
- | |||||
| 37 | 798392 | Grommet, Mtg. |
|
$ 11.33 | |||||
| 39 | 819075 | Compressor Assembly |
|
- | |||||
| 40 | 1156923 | Fan, Blade Evaporator |
|
- | |||||
| 42 | 949975 | Plate, Mounting Compressor |
|
- | |||||
| 43 | 488481 | Screw, Repair |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 44 | 643179 | Spring, Mounting |
|
- | |||||
| LIT879860 | List, Repair Parts |
|
- | ||||||
| LIT1156769 | Guide, Energy |
|
- | ||||||
| LIT950318 | Guide, Use And Care |
|
- | ||||||
| LIT950515 | Sheet, Tech And Wiring Diagram |
|
- |
