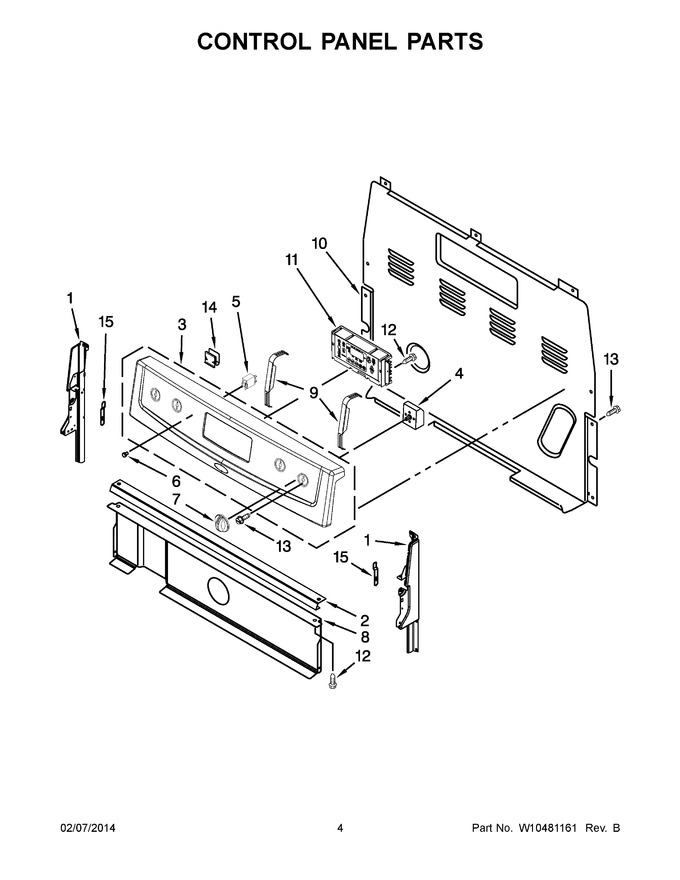

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
2	W10525121		Bracket Console Mounting   (Replaces: W10182322)				$ 98.85
3	W10170014		Panel, Control (stainless)				$ 214.40
3	W10170011		Panel, Control (white)		Appelez-nous	-
3	W10170012		Panel, Control (black)		Appelez-nous	-
3	W10170013		Panel, Control (silver)		Appelez-nous	-
4	WP3149400		Switch, Infinite (left Front & Right Front)   (Replaces: 3148954)			Immediately	$ 90.51
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 54.48
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 101.96
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	WP9761964		Knob, Infinite (black)   (Replaces: 9761964)			Immediately	$ 22.30
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 20.65
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 84.81
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	WPW10476695		Control, Electronic (white)   (Replaces: W10271723)				$ 526.55
11	WPW10476695		Control, Electronic (black)   (Replaces: W10271724)				$ 526.55
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
14	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
15	3196200		Clip, Spring				$ 10.45
