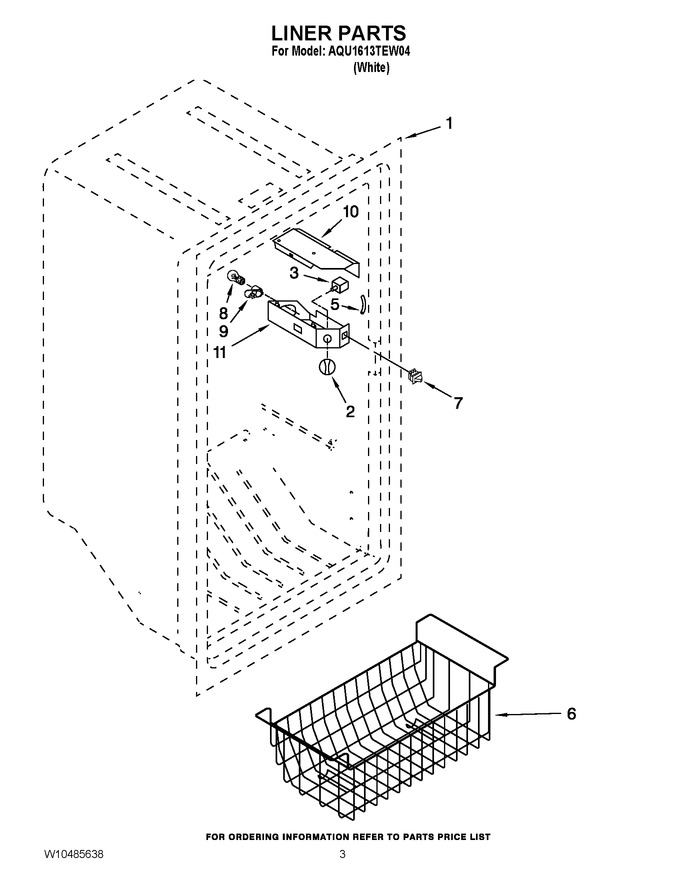

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob Control |
|
$ 27.09 | |||||
| 3 | WP4-83053-001 | Thermostat (Replaces: 4-83053-001) |
|
$ 229.38 | |||||
| 5 | W10389334 | Tubing |
|
- | |||||
| 6 | 4-60064-002 | Basket |
|
- | |||||
| 7 | W11384469 | Switch, Light (Replaces: 2-32164-001) |
|
Immediately | $ 35.18 | ||||
| 8 | 40A15 | Light Bulb (Replaces: 1-34291-002) |
|
Immediately | $ 1.98 | ||||
| 9 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 10 | 3-82392-001 | Shield |
|
- | |||||
| 11 | 4-82389-002 | Box, Control |
|
$ 39.19 |
