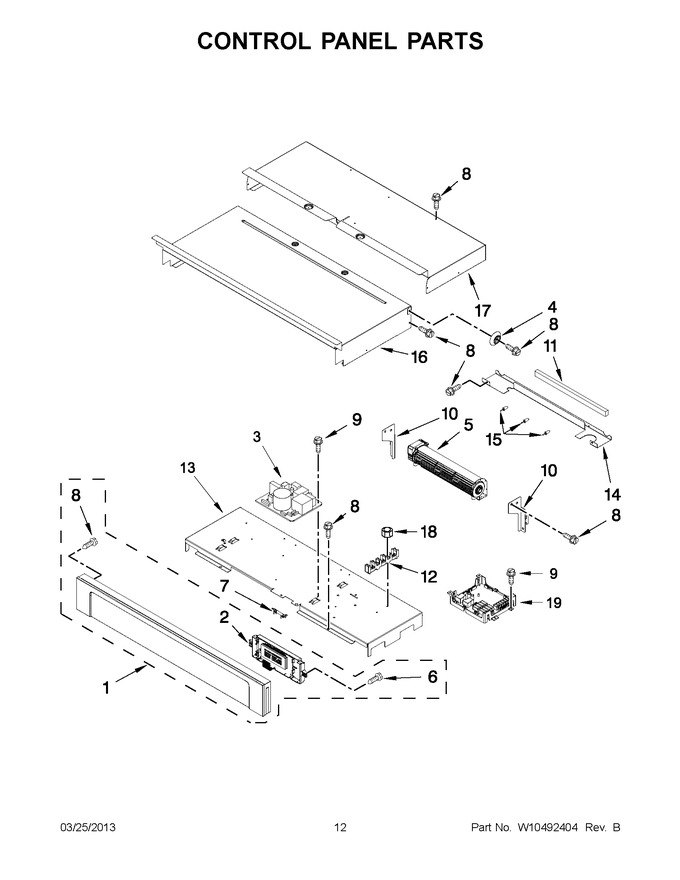

06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10364119 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 1 | W10364117 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 1 | W10364118 | Assembly, Control Panel (includes Overlay) (black) |
|
- | |||||
| 2 | W10284942 | Board, Navigator |
|
$ 348.82 | |||||
| 3 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 285.62 | ||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | W10286217 | Blower |
|
$ 208.35 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.88 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10436435) |
|
Immediately | $ 31.95 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10351257 | Bracket, Blower (left) |
|
- | |||||
| 10 | W10283078 | Bracket, Blower (right) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 13 | W10283005 | Tray, Electronic |
|
- | |||||
| 14 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 15 | W10351295 | Bumper (lower Model Only) |
|
$ 19.91 | |||||
| 16 | W10318193 | Chassis, Cover Top Front 27`` |
|
$ 122.47 | |||||
| 17 | W10318195 | Chassis, Cover Top Back 27`` |
|
$ 99.94 | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 19 | WPW10496836 | Manager, Appliance (Replaces: W10249963) |
|
$ 420.48 |
