SELECT A DIAGRAM

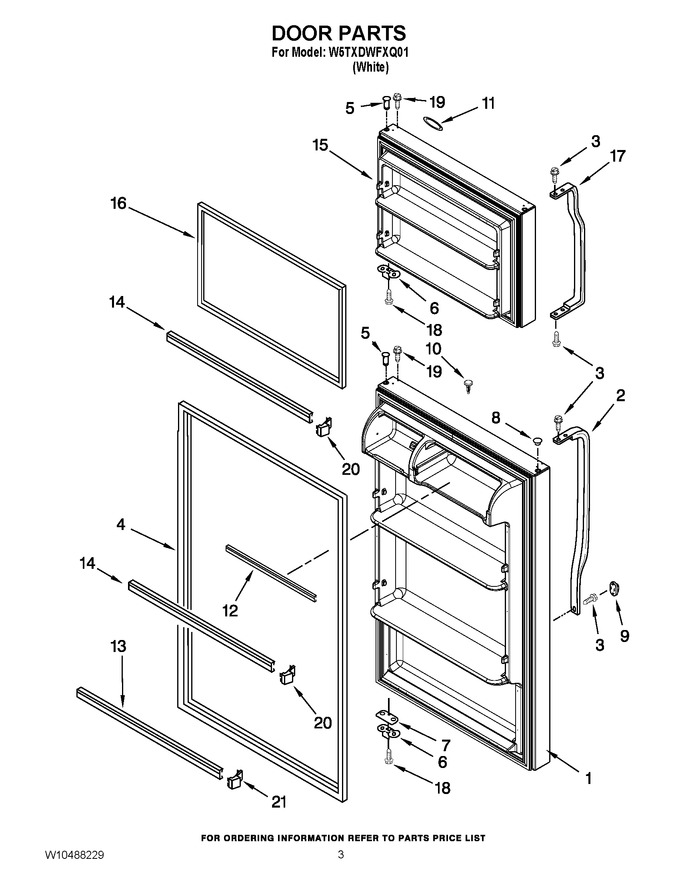

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10267742		Refrigerator Door (includes Items 4 & 5)   (Replaces: W10267742)		Appelez-nous	-
2	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 117.10
3	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 6.80
4	WP2319265T		Door Gasket (rc)   (Replaces: W10190033)			Immediately	$ 210.38
5	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
6	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
7	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 6.80
8	WP2212648		Plug, Hinge   (Replaces: 2212648)			Immediately	$ 7.37
9	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 7.33
10	WP2189000		Plug, Hole   (Replaces: 2189000)			Immediately	$ 6.99
11	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
12	W11129820		Door Trim (top)   (Replaces: W10234242)			Immediately	$ 114.61
13	WP2266738		Door Trim (wide)   (Replaces: 2266738)				$ 100.52
14	WP2266727		Door Trim (narrow)   (Replaces: 2266727)			Immediately	$ 108.51
15	W10267738		Freezer Door (includes Items 5 & 16)				$ 466.49
16	WP2319263T		Door Gasket (fc)   (Replaces: W10190031)			Immediately	$ 194.27
17	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 141.14
18	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
19	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 7.53
20	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
21	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 11.86
