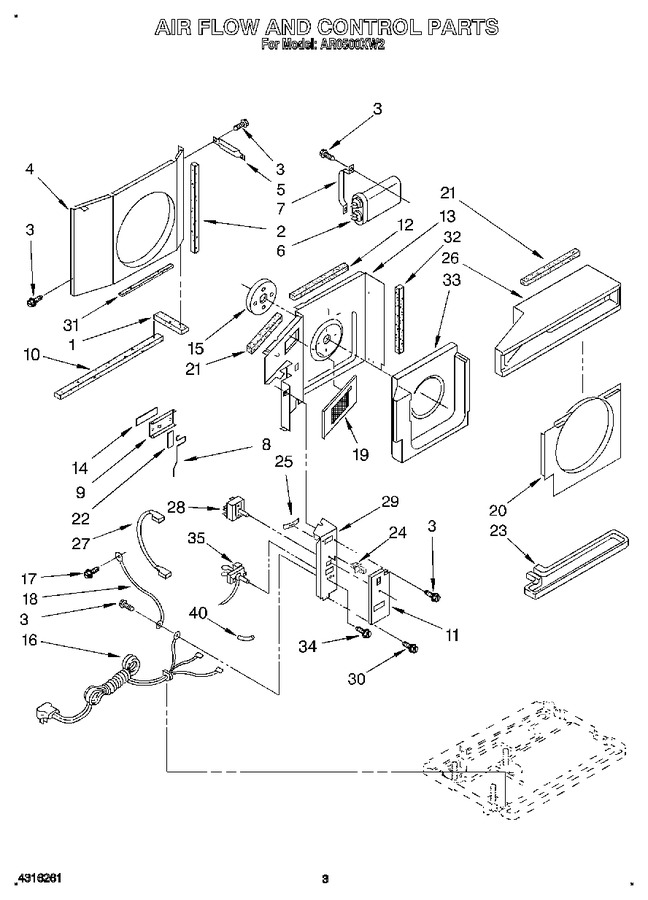

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	857923		Seal, Condenser Shroud		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	1157908		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	952086		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	1157947		Arm, Exhaust Door		Appelez-nous	-
9	1158280		Door, Exhaust		Appelez-nous	-
10	1158295		Seal, Strip		Appelez-nous	-
11	1157945		Insulation, Control Panel		Appelez-nous	-
12	WP854334		Seal, Top   (Replaces: 1158648)				$ 12.55
13	1158284		Wall, Dividing		Appelez-nous	-
14	1159175		Spacer, Door		Appelez-nous	-
15	1158469		Insulation, Motor		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	488624		Screw, St 8-32 X 3/8		Appelez-nous	-
18	856094		Wire, Ground		Appelez-nous	-
19	1158283		Screen/insul. Assembly		Appelez-nous	-
20	1157950		Orifice, Air Housing		Appelez-nous	-
21	WP854334		Seal (2)   (Replaces: 1158649)				$ 12.55
22	1158323		Seal, Barrier		Appelez-nous	-
23	1157948		Pan, Evaporator		Appelez-nous	-
24	953066		Actuator, Door		Appelez-nous	-
25	858765		Spring, Detent		Appelez-nous	-
26	1158276		Hood, Air Housing		Appelez-nous	-
27	1158937		Wire, Jumper		Appelez-nous	-
28	950519		Switch, Rocker		Appelez-nous	-
29	1158285		Panel, Control		Appelez-nous	-
30	1159222		Screw		Appelez-nous	-
31	WP854334		Seal, Condensate   (Replaces: 852063)				$ 12.55
32	WP854334		Seal, Side   (Replaces: 1158850)				$ 12.55
33	1157949		Housing, Air		Appelez-nous	-
34	488734		Screw, 6-32 X .175		Appelez-nous	-
35	950403		Control, Temperature		Appelez-nous	-
40	475841		Sleeve, Insulator Temp. Control		Appelez-nous	-
