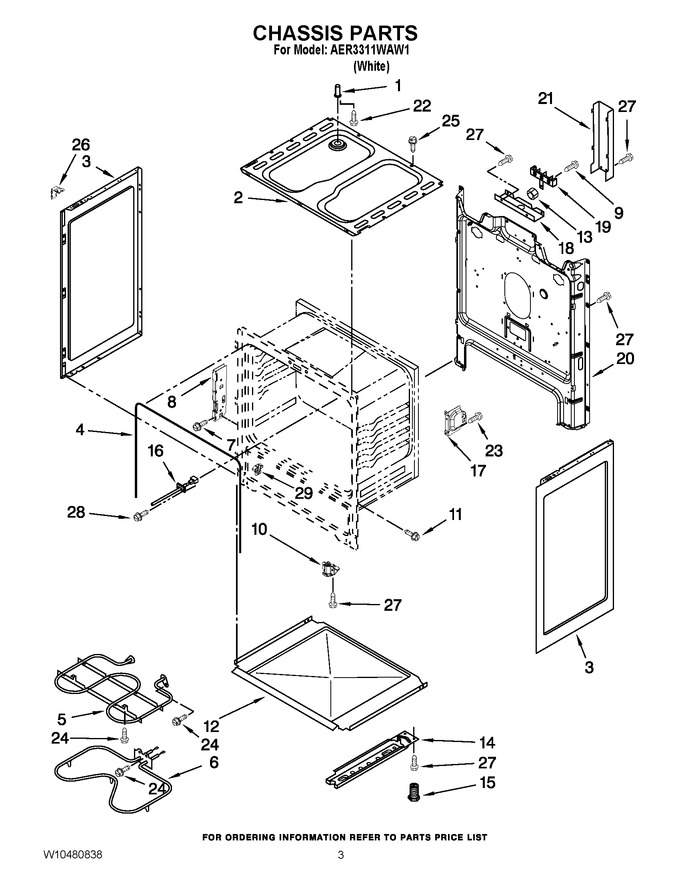

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 3169143) |
|
$ 93.87 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 236.07 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 182.19 | |||||
| 4 | W11542153 | Seal, Oven Door (Replaces: W10129032) |
|
Immediately | $ 45.18 | ||||
| 5 | W10856603 | Element, Broil (3400w) (Replaces: W10308476) |
|
Immediately | $ 172.30 | ||||
| 6 | WPW10308477 | Element, Bake (2400w) (Replaces: W10308477) |
|
Immediately | $ 64.67 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 8 | W10647259 | Bracket, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 9 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 10 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 12 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 13 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 14 | W11818353 | Rail, Base (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 14 | W11818353 | Rail, Base (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 15 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 16 | WPW10181986 | Sensor (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 17 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 15.92 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 31.65 | ||||
| 20 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 21 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 125.64 | |||||
| 22 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 7.25 | |||||
| 23 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 24 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 25 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 26 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 27 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 28 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 29 | W10763667 | Glide, Drawer (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 52.37 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 103.60 |
