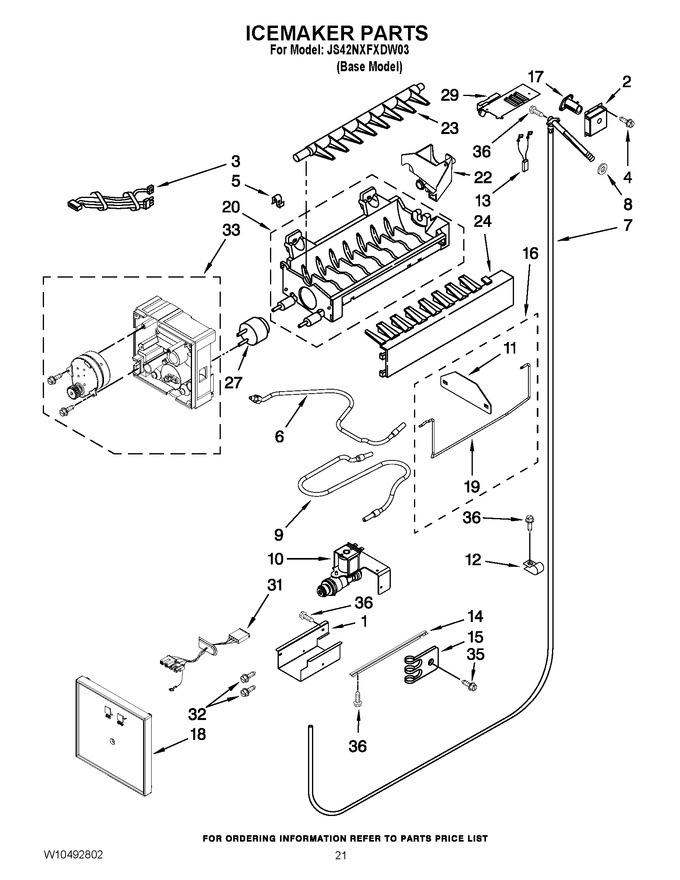

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10129653		Shield, Valve		Appelez-nous	-
2	W10176577		Cover, Fill Tube Heater		Appelez-nous	-
3	W10377187		Wire Assembly, Icemaker		Appelez-nous	-
4	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.99
6	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 61.10
7	W11662302		Water Inlet Tube Assembly   (Replaces: 2314049)		Appelez-nous	-
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
9	W11533506		Tube, Filter Outlet   (Replaces: 2317912)				$ 29.84
10	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 228.29
11	W11215550		Extension-shut Off Arm   (Replaces: 2304353)			Immediately	$ 48.65
12	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
13	2310108		Jumper, Fill Tube Heater		Appelez-nous	-
14	2320559		Support, Valve				$ 79.91
15	WP488366		Clamp, Nylon Valve   (Replaces: 2208136)				$ 10.73
16	W10372199		Shut Off Arm Assy		Appelez-nous	-
17	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
18	W10377174		Cover				$ 73.20
19	W10372190		Shut Off Arm		Appelez-nous	-
20	WPW10190929		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 210.17
22	WPW10372171		Cup-water Fill   (Replaces: W10372171)				$ 72.84
23	WP627843		Ejector   (Replaces: 627843)				$ 79.00
24	WPW10122563		Ice Stripper   (Replaces: W10122563)				$ 89.48
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 103.18
29	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 80.40
31	W10279393		Wire Assembly (water Valve)				$ 141.36
32	WPW10141604		Screw   (Replaces: W10141604)				$ 7.97
33	WPW10281342		Module & Motor Assembly   (Replaces: W10281342)				$ 252.43
35	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
36	W11624204		Screw   (Replaces: 486194)				$ 13.25
100	W10435673		Complete Icemaker Assembly		Appelez-nous	-
NI	W10355010		Affresh Kitchen Appliance Cleaner		Appelez-nous	-
NI	W11175806		Install Kit   (Replaces: W10249830)				$ 251.66
NI	W10234156		Block, Install Template, Wood Panels				$ 15.09
NI	W10222281		Sxs		Appelez-nous	-
NI	W10222283		Grille				$ 51.27
NI	W10355016		Affresh Stainless Steel Cleaner		Appelez-nous	-
NI	W10355049		Affresh Stainless Steel Wipes				$ 7.91
NI	REFDEODOR		Deodorizer Pack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
