01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts

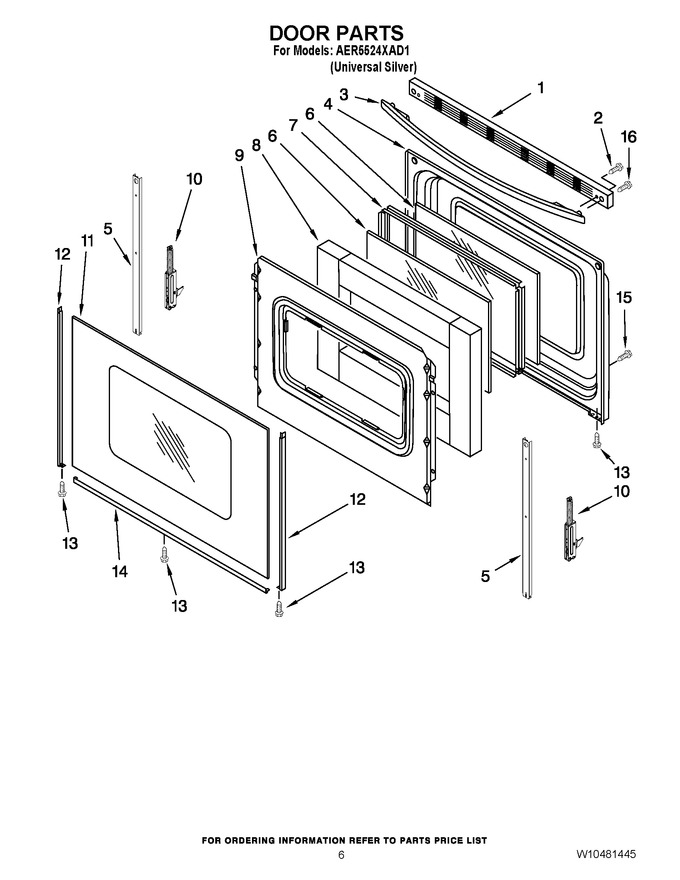

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: W10202217) |
|
$ 243.59 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 10 | WPW10299224 | Hinge, Door (active) (Replaces: W10299224) |
|
Immediately | $ 66.14 | ||||
| 11 | W10144949 | Glass, Outer (black) |
|
- | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W10067550 | Trim, Lower (universal Silver) |
|
- | |||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 |
