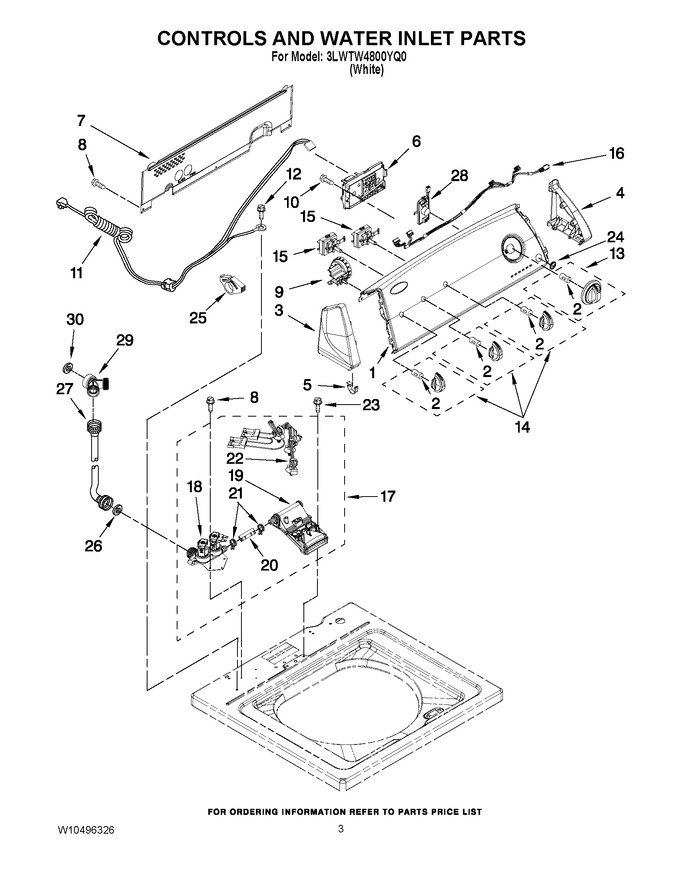

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10365092 | Panel, Console (Replaces: W10365092) |
|
$ 233.97 | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8565957 | Cap, End (l.h.) (includes Item 5) (Replaces: 8565957) |
|
$ 58.28 | |||||
| 4 | WP8565954 | Cap, End (r.h.) (includes Item 5) (Replaces: 8565954) |
|
$ 59.26 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W10723436 | Control Unit Assembly, Machine & Motor (Replaces: W10446370) |
|
$ 392.77 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 237.47 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10268911 | Switch, Water Level (Replaces: W10268911) |
|
Immediately | $ 171.59 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10446856 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W10034750 | Knob, Timer |
|
$ 28.27 | |||||
| 14 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | W10291174 | Harness, Upper |
|
$ 228.02 | |||||
| 17 | W10465928 | Inlet Assembly, Water |
|
- | |||||
| 18 | WPW10465728 | Valve, Water Mixing (Replaces: W10465728) |
|
$ 195.87 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 81.30 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 23.27 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.94 | ||||
| 22 | W10474662 | Harness, Valve |
|
- | |||||
| 23 | WP8281163 | Screw 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 24 | WPW10251309 | Pushbutton, Start (Replaces: W10251309) |
|
Immediately | $ 68.40 | ||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 201.83 | |||||
| 26 | WP16123 | Washer, Water Inlet Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 27 | WPW10615809 | Hose, Water Inlet (cold Water) (Replaces: 3949383) |
|
$ 94.24 | |||||
| 27 | WPW10615831 | Hose, Water Inlet (hot Water) (Replaces: 3949382) |
|
$ 93.29 | |||||
| 28 | W10522615 | Filter, Line Assembly (Replaces: W10434306) |
|
- | |||||
| 29 | WPW10269488 | Connector, Y Hose (Replaces: W10269488) |
|
$ 80.68 | |||||
| 30 | WP3357450 | Washer, Export Hose Adaptor (Replaces: 3357450) |
|
$ 10.40 | |||||
| NI | WPW10476820 | 10a Cord Adapters: (british) (Replaces: W10476820) |
|
$ 25.24 | |||||
| NI | WPW10476822 | 10a Cord Adapters: (european) (Replaces: W10476822) |
|
$ 72.81 | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | N/P | (parts Not Shown) |
|
- | |||||
| NI | W10474959 | 10a Cord Adapters (south) |
|
- |
