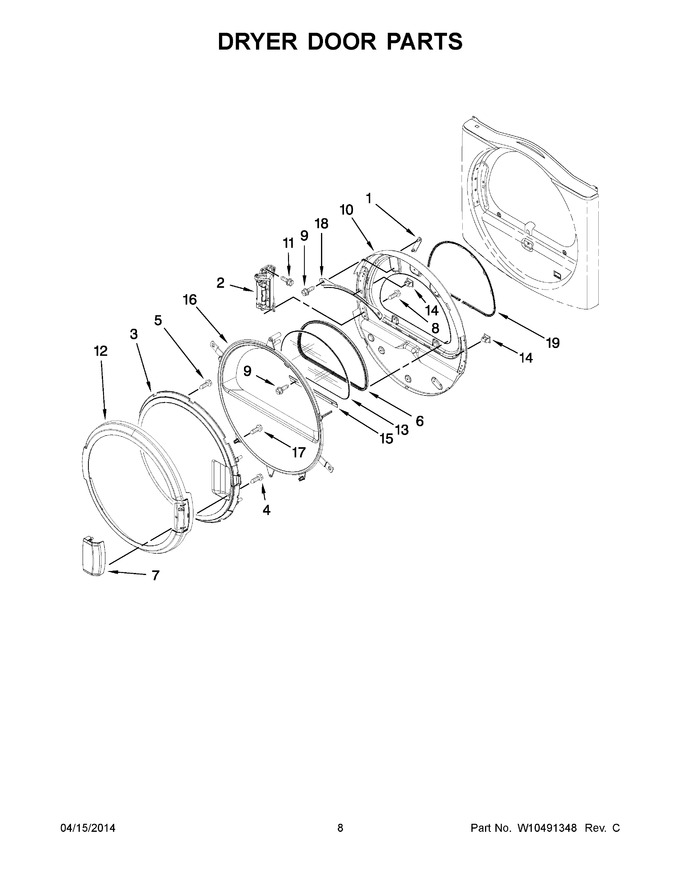

05 - Dryer Door Parts


06 - Washer Door Parts


07 - Washer Cabinet Parts


08 - Dispenser Parts


09 - Tub And Basket Parts


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Hole Cover, Hinge				$ 88.49
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 209.23
3	W10137473		Assembly, Door Intermediate		Appelez-nous	-
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 6.80
5	3400618		Screw				$ 61.15
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 25.40
7	W10850397		Handle, Door (white)   (Replaces: W10112976)				$ 32.85
8	WPW10159996		Screw   (Replaces: W10159996)				$ 7.67
9	WP3373329		Screw   (Replaces: 3393258)				$ 7.67
10	WPW10421900		Assembly, Door (inner)   (Replaces: W10421900)				$ 279.34
11	WP355515		Screw   (Replaces: 355515)				$ 7.63
12	W11661105		Outer Ring, Door   (Replaces: W10112916)				$ 161.69
13	WPW10286878		Window   (Replaces: W10286878)				$ 247.28
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.00
15	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 16.21
16	W10137471		Door, Intermediate (stationary)		Appelez-nous	-
17	WP8534022		Screw   (Replaces: 8534022)				$ 7.53
18	8519356		Retainer, Window (upper)		Appelez-nous	-
19	WPW10407973		Seal, Door   (Replaces: W10407973)				$ 109.97
