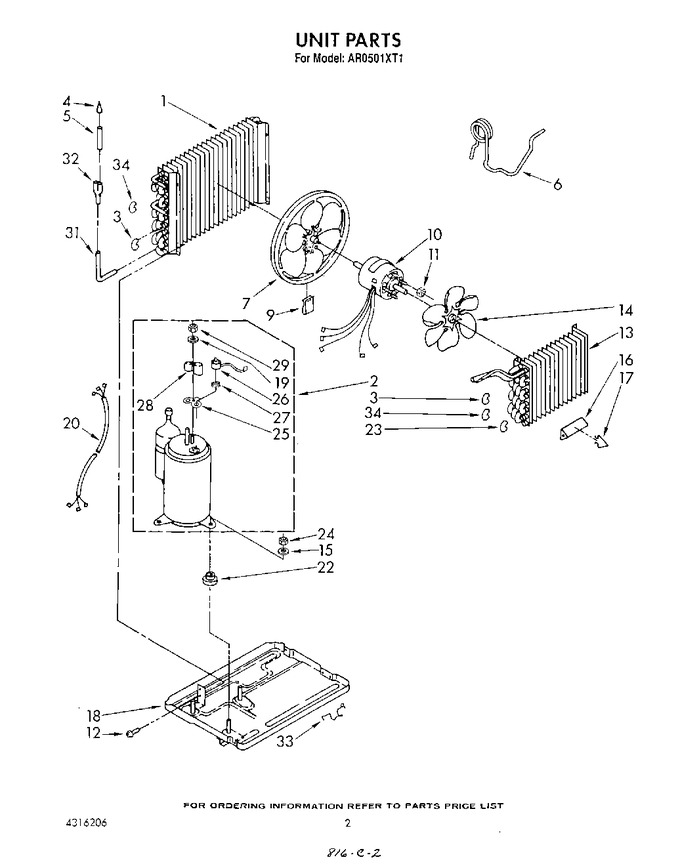

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1155940		Condenser		Appelez-nous	-
2	4210324		Compressor		Appelez-nous	-
3	708532		Bend, Return Condenser (4) Evaporator (7)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1157813		Tube, Restrictor		Appelez-nous	-
7	1155859		Blade, Fan		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	1156828		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
13	1157726		Evaporator		Appelez-nous	-
14	1156923		Blade, Fan		Appelez-nous	-
15	489108		Washer (3)		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	950013		Base		Appelez-nous	-
19	950037		Washer		Appelez-nous	-
20	484136		Harness, Wiring		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1156533		Bend Return		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	1156601		Overload		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut   (Replaces: 950027)				$ 5.20
31	1155519		Tube, 90~ Connect		Appelez-nous	-
32	947364		Tube, Flow Divider		Appelez-nous	-
33	949634		Clip, Front Mtg. (2)		Appelez-nous	-
34	LIT4216206		Literature Parts (list, Repair Parts)		Appelez-nous	-
34	708531		Bend, Return Condenser (13) Evaporator (3)		Appelez-nous	-
34	LIT1157886		Sheet, Tech And Wiring Diagram		Appelez-nous	-
34	LIT1155974		Instructions, Installation		Appelez-nous	-
34	LIT1156767		Guide, Operation		Appelez-nous	-
34	LIT1156881		Guide, Energy		Appelez-nous	-
