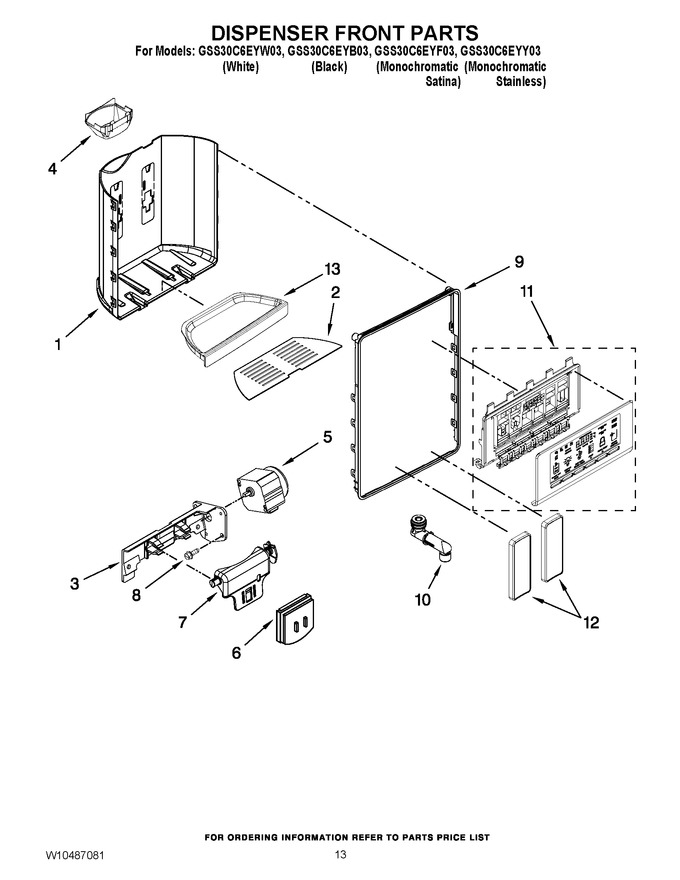

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276209 | Grate, Drip Tray (Replaces: W10276209) |
|
$ 73.40 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 68.78 | |||||
| 4 | WPW10435760 | Chute, Door (Replaces: W10339578) |
|
Immediately | $ 21.55 | ||||
| 5 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 93.71 | |||||
| 6 | W10838126 | Ice Door Assembly (includes Items 3, 5, 7, & 8) (Replaces: W10353566) |
|
$ 147.90 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 37.67 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 9 | W10276265 | Trim Ring (white) |
|
$ 57.37 | |||||
| 9 | W10448931 | Trim Ring (chromium Frost) (Replaces: W10254252) |
|
- | |||||
| 10 | WP2305235 | Spigot (Replaces: 2305235) |
|
Immediately | $ 132.36 | ||||
| 11 | W10418420 | Electronic Control Assy (storm Cloud) |
|
- | |||||
| 11 | W10418419 | Electronic Control Assy (silver Mirror) |
|
- | |||||
| 12 | W11812026 | Pad, Ice & Water (black) (Replaces: W10370577) |
|
$ 56.73 | |||||
| 12 | W11624941 | Pad, Ice & Water (midnight Grey) (Replaces: W10370582) |
|
$ 63.74 | |||||
| 12 | W10370583 | Pad, Ice & Water (white) |
|
- | |||||
| 13 | W10276225 | Tray, Housing (satina) |
|
$ 66.65 | |||||
| 13 | W10254258 | Tray, Housing (white) |
|
$ 89.13 | |||||
| 13 | W10254259 | Tray, Housing (black) |
|
$ 64.36 |
