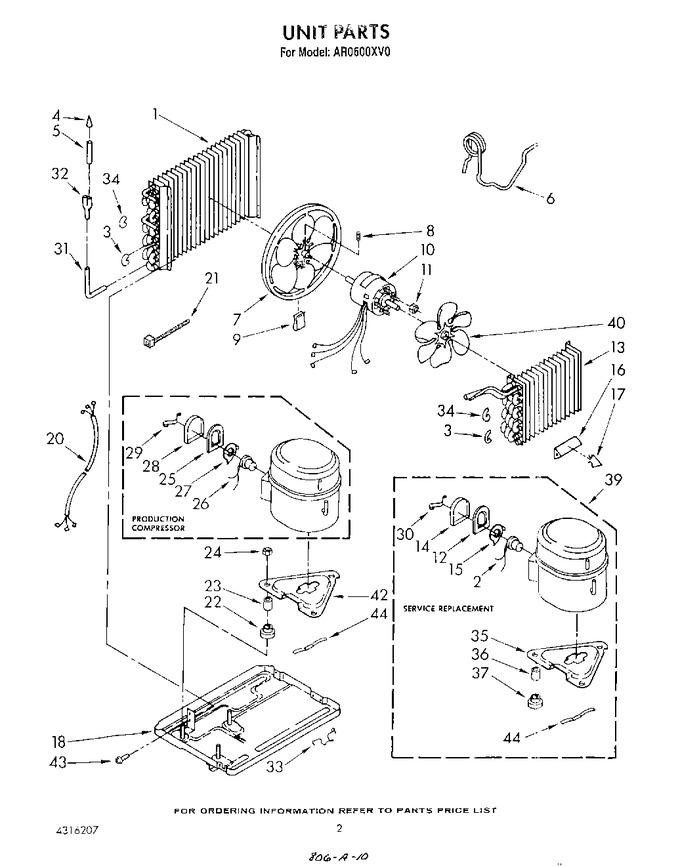

02 - Unit
03 - Airflow And Control
04 - Cabinet
05 - Installation
06 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 952576 | Condenser |
|
- | |||||
| 2 | 852945 | Overload |
|
- | |||||
| 3 | 855199 | Bend, Return Condenser (15) Evapprator (5) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 952575 | Tube, Restrictor |
|
- | |||||
| 7 | 1155859 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 1157802 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 643296 | Gasket, Cover |
|
- | |||||
| 13 | 1157115 | Evaporator |
|
- | |||||
| 14 | 644362 | Cover, Terminal |
|
- | |||||
| 15 | 644362 | Spring, Overload |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950323 | Base |
|
$ 30.30 | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | WPW10339879 | Tie, Wire (4) (Replaces: 612805) |
|
$ 7.47 | |||||
| 22 | 646499 | Grommet (3) |
|
- | |||||
| 23 | 949990 | Sleeve (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 952569 | Overload |
|
- | |||||
| 27 | 949997 | Spring, Overload |
|
- | |||||
| 28 | 949999 | Cover, Terminal |
|
- | |||||
| 29 | 950005 | Retainer, Terminal Cover |
|
- | |||||
| 30 | 643299 | Retainer, Cover |
|
- | |||||
| 31 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 33 | 949634 | Clip, Front Mtg. (2) |
|
- | |||||
| 34 | 854624 | Bend, Return Condenser (2) Evaporator (7) |
|
- | |||||
| 35 | 484033 | Plate, Mtg |
|
- | |||||
| 36 | 798393 | Sleeve, Mtg. |
|
- | |||||
| 37 | 798392 | Grommet, Mtg. |
|
$ 11.33 | |||||
| 39 | 484206 | Compressor Assembly |
|
- | |||||
| 40 | 1156594 | Fan, Blade Evaporator |
|
- | |||||
| 42 | 949975 | Plate, Mounting Compressor |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 43 | 488481 | Screw, Repair |
|
- | |||||
| 44 | LIT4316207 | Literature Parts (list, Repair Parts) |
|
- | |||||
| 44 | 643179 | Spring, Mounting |
|
- | |||||
| 44 | LIT1156495 | Sheet, Tech And Wiring Diagram |
|
- | |||||
| 44 | LIT1156767 | Guide, Operation |
|
- | |||||
| 44 | LIT1158206 | Guide, Energy |
|
- |
