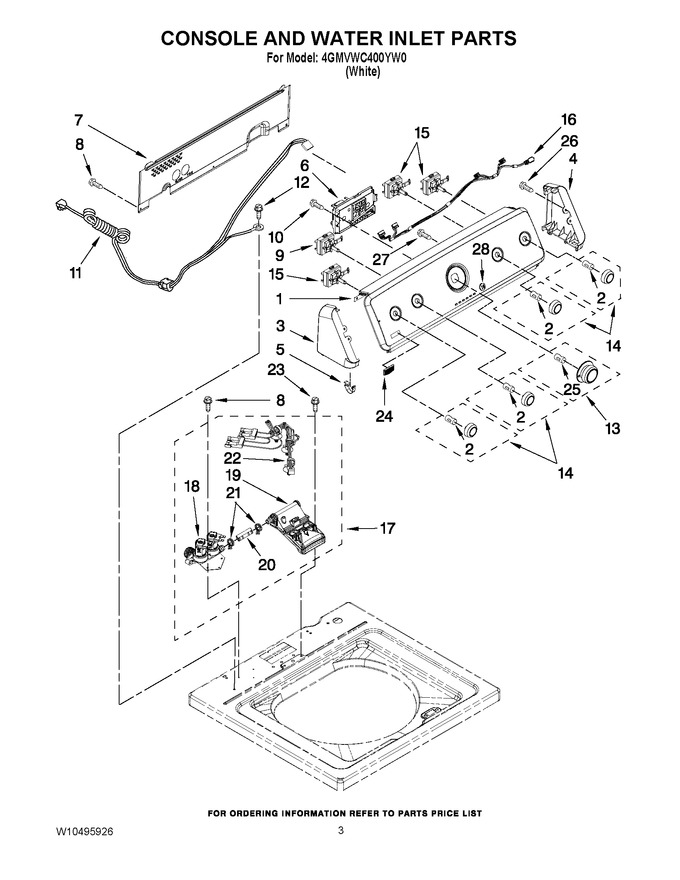

01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365086		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
3	WPW10193824		Cap, End (l.h.) (includes Item 5)   (Replaces: W10193824)				$ 66.95
4	WPW10193821		Cap, End (r.h.) (includes Item 5)   (Replaces: W10193821)				$ 67.25
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 15.66
6	W10480701		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 237.47
8	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
11	W10422755		Cord, Power		Appelez-nous	-
12	W10846509		Screw, Power (cord Ground)   (Replaces: 3400076)			Immediately	$ 7.38
13	WPW10317454		Knob, Timer   (Replaces: W10317454)				$ 57.12
14	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 57.00
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 163.89
16	W10291177		Harness, Upper				$ 137.40
17	WPW10345523		Inlet Assembly, Water   (Replaces: W10345523)				$ 188.77
18	WPW10339585		Valve, Water Mixing   (Replaces: W10339585)				$ 212.18
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 81.30
20	W10238347		Hose, Vacuum Break				$ 23.27
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 7.94
22	WPW10344775		Harness, Valve   (Replaces: W10344775)				$ 154.36
23	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 9.63
24	W10323734		Badge				$ 57.56
25	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.38
26	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 13.28
27	3400073		Screw, Ground		Appelez-nous	-
28	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 68.40
NI	WPW10476820		10a Cord Adapters: (british)   (Replaces: W10476820)				$ 25.24
NI	N/P		Parts Not Shown		Appelez-nous	-
NI	WPW10475423		10a Cord Adapters: (type B)   (Replaces: W10475423)				$ 19.58
NI	WPW10476822		10a Cord Adapters: (european)   (Replaces: W10476822)				$ 72.81
NI	W10446855		10a Cord Lock		Appelez-nous	-
