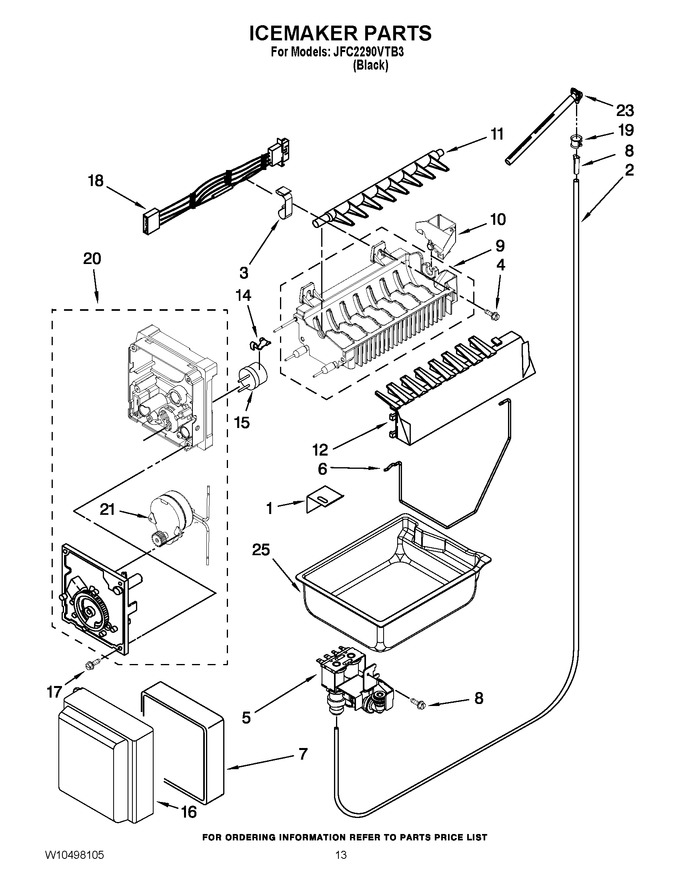

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Icemaker (Replaces: 2256086) |
|
$ 87.89 | |||||
| 2 | W11120581 | Tube, Plastic (Replaces: B5705333SP) |
|
$ 112.44 | |||||
| 3 | 10526702 | Clamp |
|
- | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WPW10420083 | Valve-inlet (Replaces: W10420083) |
|
Immediately | $ 145.92 | ||||
| 6 | WPW10378255 | Arm-shut Off (Replaces: W10378255) |
|
$ 83.37 | |||||
| 7 | W10377174 | Cover, Im |
|
$ 73.20 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101SP) |
|
$ 7.39 | |||||
| 9 | WPW10300025 | Mold & Heater Assembly (also Order 542638) (Replaces: W10300025) |
|
Immediately | $ 181.73 | ||||
| 10 | W10410073 | Cup Water Fill |
|
$ 75.66 | |||||
| 11 | W10318914 | Ejector |
|
$ 34.27 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 15 | WP627985 | Thermostat Order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 103.18 | |||||
| 16 | W10460383 | Cover, Im Module |
|
$ 92.76 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 18 | WPW10458985 | Harness, Ice Maker (Replaces: W10404661) |
|
$ 100.22 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 10.44 | |||||
| 20 | WPW10281342 | Module Assembly (includes Items 21& 22) (Replaces: W10281342) |
|
$ 252.43 | |||||
| 21 | N/P | Motor (not Available, Order No.20) |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 107.87 | ||||
| 25 | W10120005 | Pan, Ice |
|
$ 190.46 | |||||
| 100 | W10884390 | Complete Ice Maker (Replaces: W10377152) |
|
Immediately | $ 134.69 |
