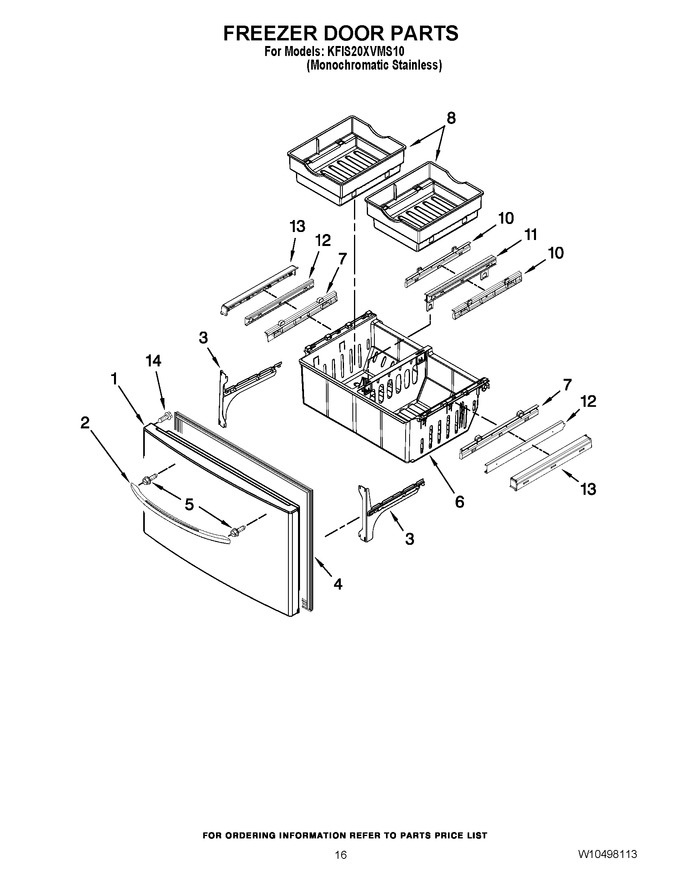

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977874S		Freezer Door (stainless)		Appelez-nous	-
2	WPW10314517K		Handle, Door (stainless)   (Replaces: W10314517)				$ 219.03
3	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10330993)				$ 149.48
3	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10330991)				$ 147.88
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10443322)				$ 291.24
5	WPW10661886		Screw, Handle   (Replaces: W10303465)			Immediately	$ 11.59
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 83.05
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 109.91
10	W10184223		Adapter, Bin (inner)   (Replaces: 13002604SP)				$ 87.43
11	W10235358		Bracket/glide Assembly				$ 286.28
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 302.24
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 56.23
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 56.23
14	WP98165		Screw, Bracket   (Replaces: 12990521)				$ 7.71
