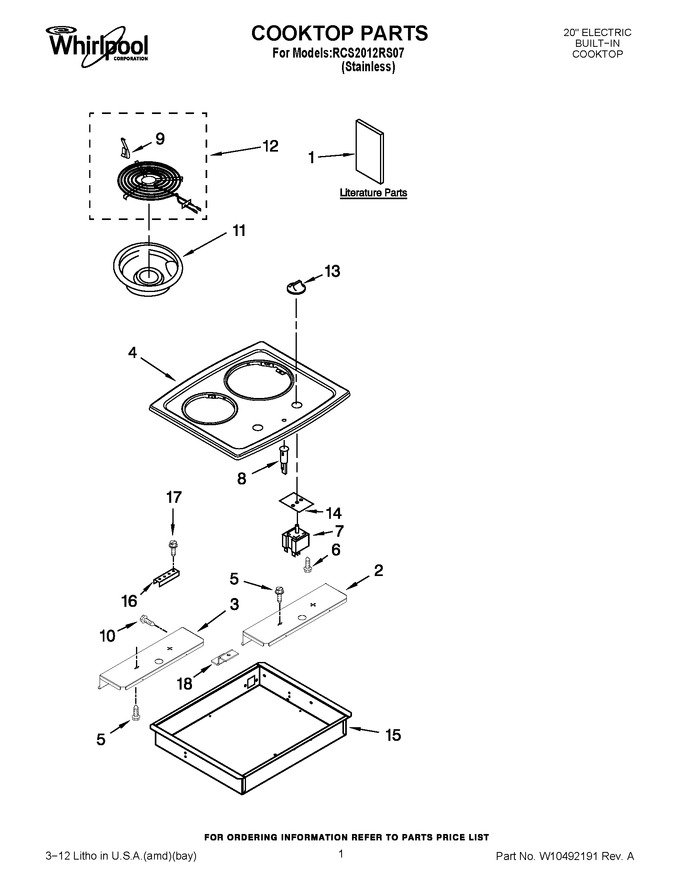

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8286310		Installation, Instructions		Appelez-nous	-
1	W10162164		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10414016		Bracket, Switch Mounting			Immediately	$ 81.05
3	W10414016		Bracket, Mounting   (Replaces: W10391088)			Immediately	$ 81.05
4	WPW10140169		Cooktop   (Replaces: W10140169)				$ 374.51
5	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.57
7	WPW10392436		Switch Infinite (use W/6`` Element (blue Shaft))   (Replaces: W10392436)				$ 151.26
7	WPW10392437		Switch Infinite (use W/8`` Element (silver Shaft))   (Replaces: W10392437)				$ 151.38
8	WP4456181		Light, Indicator   (Replaces: 4456181)				$ 100.13
9	WP3195917		Clip, Element   (Replaces: 3195917)			Immediately	$ 7.31
10	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
11	WPW10196405		Pan, Surface Unit (8``)   (Replaces: W10196405)			Immediately	$ 15.56
11	WPW10196406		Pan, Surface Unit (6``)   (Replaces: W10196406)			Immediately	$ 12.05
12	WP9761346		Element, Surface (8``)   (Replaces: 8053267)			Immediately	$ 156.10
12	WPW10345407		Element, Surface (6``)   (Replaces: 8053265)			Immediately	$ 148.88
13	WP8286043BL		Knob, Control (2)   (Replaces: 8286043BL)				$ 21.31
14	3183956		Seal, Switch Shaft (2)				$ 43.89
15	W10391085		Burner Box				$ 134.40
16	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 83.57
17	WP3400093		Screw   (Replaces: 3400093)				$ 6.80
18	W10397489		Bracket, Right		Appelez-nous	-
