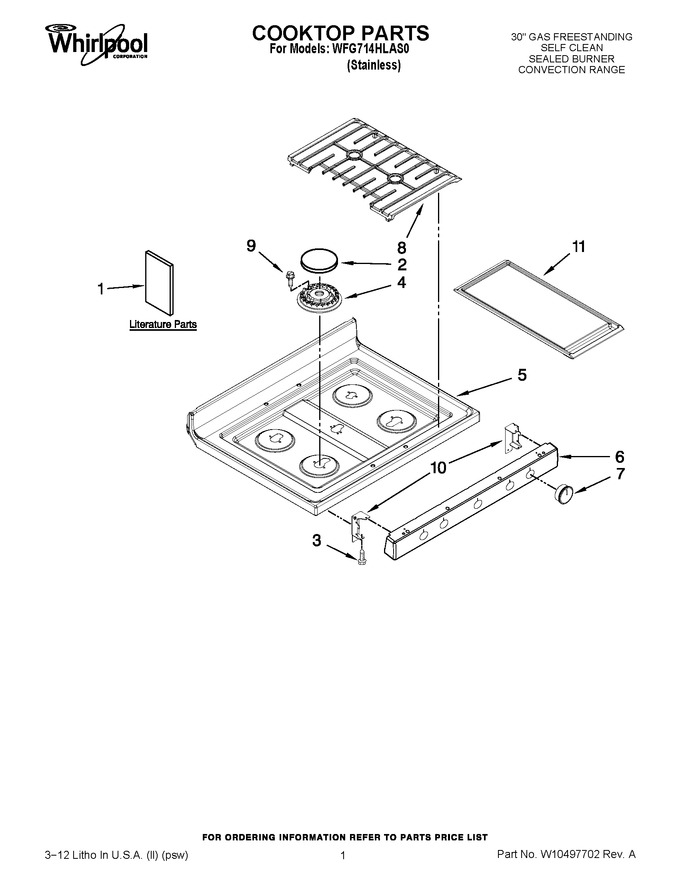

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10392928 | Owners Manual |
|
- | |||||
| 1 | W10348456 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10400066 | Quick Start Guide (english) |
|
- | |||||
| 1 | W10403810 | Installation Instructions |
|
- | |||||
| 2 | WPW10183374 | Set, Burner Cap (Replaces: W10183374) |
|
$ 180.16 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | WPW10406283 | Burner (rr & Center) (Replaces: W10406283) |
|
$ 70.22 | |||||
| 4 | WPW10406243 | Burner (lr) (Replaces: W10406243) |
|
Immediately | $ 35.17 | ||||
| 4 | WPW10406878 | Burner (rf & Lf) (Replaces: W10406878) |
|
$ 96.73 | |||||
| 5 | W10366730 | Cooktop |
|
- | |||||
| 6 | W10330066 | Panel, Manifold |
|
$ 259.37 | |||||
| 7 | W10766544 | Knob (Replaces: W10430807) |
|
Immediately | $ 39.69 | ||||
| 8 | W11394363 | Set, Burner Grate (Replaces: W10447922) |
|
$ 332.15 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 10 | W10289096 | Bracket, Manifold (left) |
|
$ 138.51 | |||||
| 10 | W10106419 | Bracket, Manifold (right) |
|
- | |||||
| 11 | W10347384 | Kit, Griddle |
|
- |
