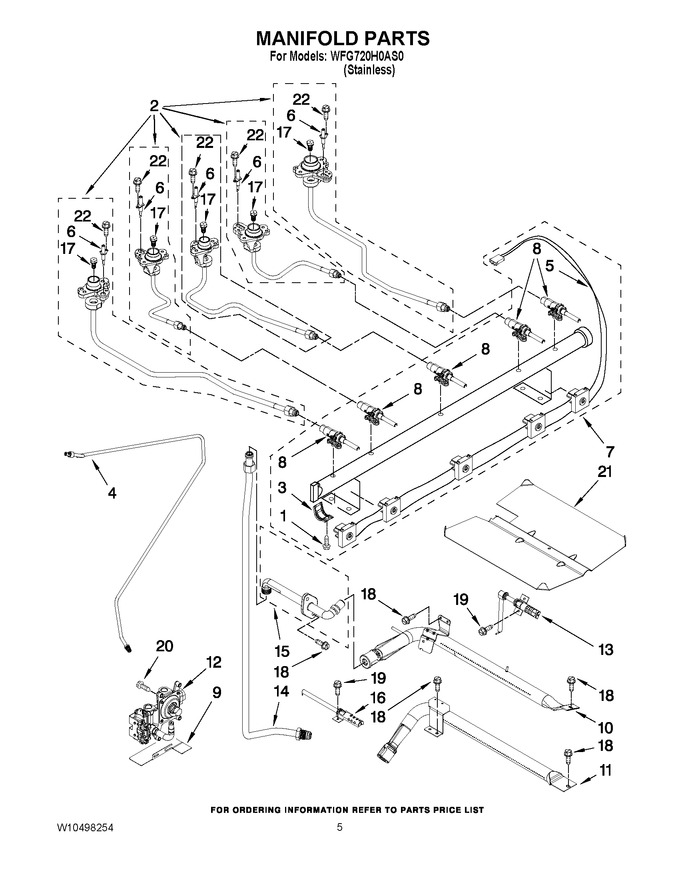

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.59
2	WPW10157415		Holder, Orifice ((rr) 15k)   (Replaces: W10157415)				$ 103.91
2	WPW10157419		Holder, Orifice ((center) 8k)   (Replaces: W10157419)				$ 103.30
2	W10170347		Holder, Orifice ((lf) 15k)				$ 48.41
2	WPW10347410		Holder, Orifice ((rf) 15k)   (Replaces: W10347410)				$ 100.40
2	W10157418		Holder, Orifice ((lr) 15k)				$ 49.23
3	W10949105		Bracket, Saddle   (Replaces: W10295996)				$ 20.48
4	W10510125		Tubing, Main Supply   (Replaces: W10224922)				$ 196.79
5	W10413869		Harness, Igniter Includes Switches				$ 185.80
6	WPW10216419		Ignitor, Top Burner   (Replaces: W10216419)			Immediately	$ 33.05
7	WPW10413871		Assembly, Manifold   (Replaces: W10413871)				$ 270.57
8	WPW10279615		Valve (lf & Rf)   (Replaces: W10279615)				$ 233.02
8	WPW10279614		Valve (lr/center)   (Replaces: W10279614)				$ 251.83
8	WPW10247744		Valve (rr)   (Replaces: W10247744)				$ 252.11
9	W10224921		Bracket, Regulator		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10273197)				$ 85.48
11	W10764654		Burner, Bake   (Replaces: W10323984)			Immediately	$ 82.49
12	WPW10602004		Valve, Regulator   (Replaces: W10224915)				$ 373.68
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 98.85
14	W10306050		Tubing (broiler Fitting To Valve)				$ 170.84
15	W10583216		Fitting, Broiler   (Replaces: W10319134)				$ 86.27
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 93.71
17	W10170511		Orifice, Burner (left Front)				$ 42.01
17	WPW10170506		Orifice, Burner (right Rear)   (Replaces: W10170506)				$ 88.07
17	WPW10347414		Orifice, Burner (right Front)   (Replaces: W10347414)				$ 81.45
17	WPW10170508		Orifice, Burner (left Rear)   (Replaces: W10170508)				$ 85.69
17	WPW10170507		Orifice, Burner (center)   (Replaces: W10170507)				$ 88.07
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
19	W11684507		Screw   (Replaces: 3196385)				$ 12.84
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
21	3601P336-45		Baffle, Burner				$ 204.38
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
NI	W10400497		Orifice, Lp Broil				$ 46.65
NI	WPW10400494		Orifice, Lp Bake   (Replaces: W10400494)			Immediately	$ 102.11
NI	WPW10170516		Lp Kit, Surface Burners   (Replaces: W10170516)				$ 100.37
