02 - Unit
03 - Air Flow And Control
04 - Cabinet
05 - Installation
06 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

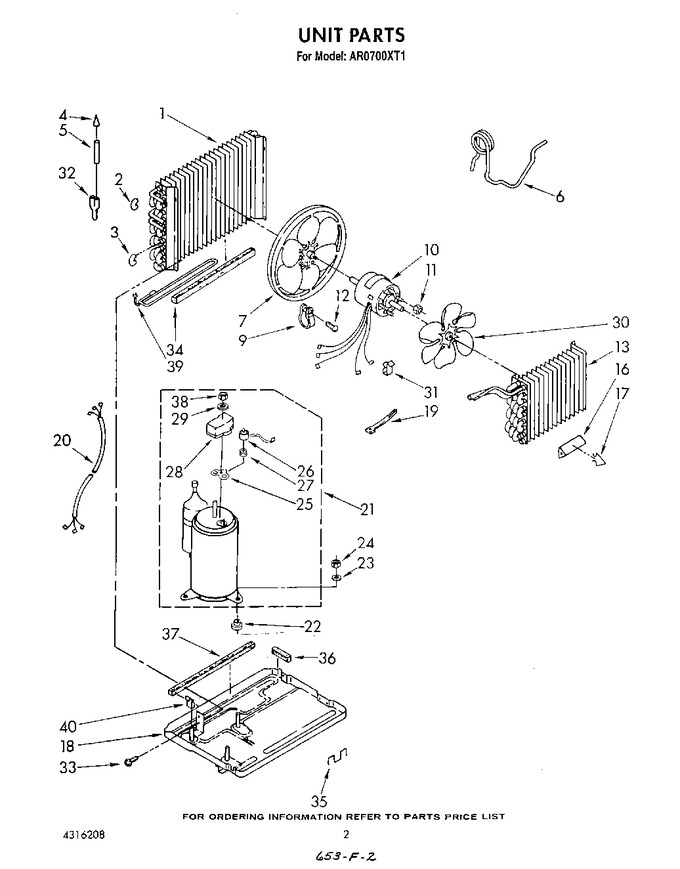

| 1 | 1155940 | Condenser |
|
- | |||||
| 2 | 854624 | Bend, Return Condenser |
|
- | |||||
| 3 | 855199 | Bend, Return Condenser |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 950850 | Tube, Outlet (includes No. 4) |
|
- | |||||
| 6 | 1157043 | Tube, Restri21or |
|
- | |||||
| 7 | 1155859 | Blade, Fan |
|
- | |||||
| 9 | 1158502 | Clamp, Blancing |
|
- | |||||
| 10 | 1157804 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-3/8 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WP489069 | Screw, Slotted Hex (Replaces: 489292) |
|
Immediately | $ 7.56 | ||||
| 13 | 1155639 | Evaporator |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950013 | Base |
|
- | |||||
| 19 | WPW10339879 | Tie, Wire (4) (Replaces: 612805) |
|
$ 7.47 | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 1157026 | Compressor |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 1156715 | Locknut (3) |
|
$ 9.68 | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1157040) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | 950037 | Washer |
|
- | |||||
| 30 | 1156594 | Fan, Blade Evaporator |
|
- | |||||
| 31 | 852451 | Clamp, Wiring |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 33 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 33 | 488481 | Screw, Repair |
|
- | |||||
| 34 | WP854334 | Seal, Condensate (condenser Bottom) (Replaces: 852063) |
|
$ 12.55 | |||||
| 35 | 949634 | Clip, Front Mtg. (2) |
|
- | |||||
| 36 | 646870 | Seal, Condensate (base R.h. Flange) |
|
- | |||||
| 37 | 854841 | Seal, Strip (base Rear Flange) |
|
- | |||||
| 38 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 39 | 1155622 | Tube, Condenser Extension |
|
- | |||||
| 40 | 1156028 | Clip, Speed |
|
- | |||||
| LIT1155974 | Installation |
|
- | ||||||
| LIT4316208 | List, Repair Parts |
|
- | ||||||
| LIT950222 | Wiring Diagram |
|
- | ||||||
| LIT1156495 | Sheet, Tech |
|
- |
