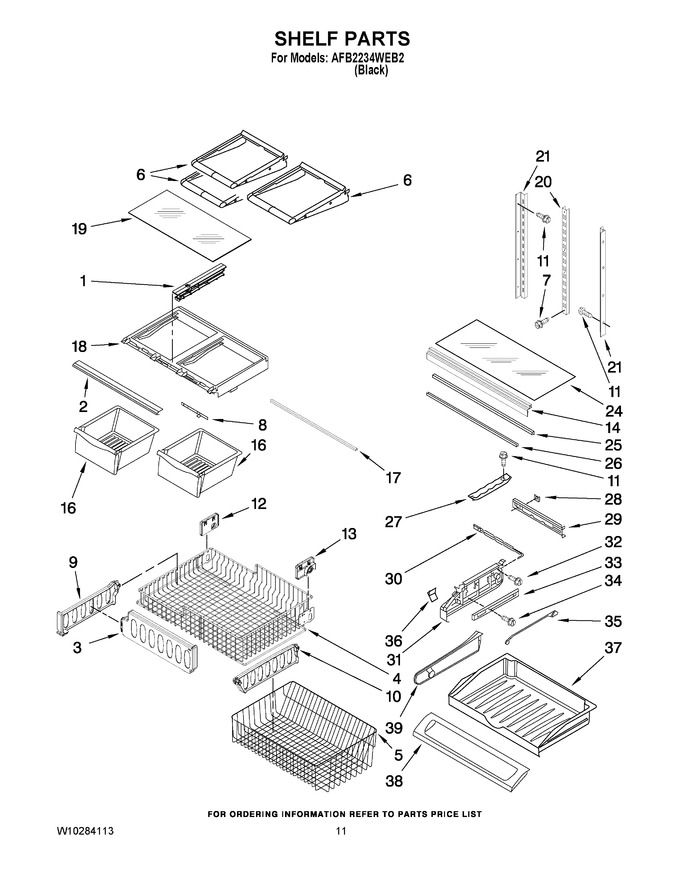

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 106.61 | ||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343) |
|
Immediately | $ 89.69 | ||||
| 3 | W10311695 | Divider, Basket (upper) (Replaces: W10171570) |
|
$ 27.18 | |||||
| 4 | W10348238 | Basket, Freezer Upper (Replaces: W10169950) |
|
$ 205.32 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 224.42 | ||||
| 6 | W11402523 | Shelf (3) (Replaces: 12463509) |
|
Immediately | $ 209.21 | ||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 12.41 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 26.27 | ||||
| 10 | W10205416 | Divider, Basket Lower |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 12 | W10348259 | Mount, Lh Gear (Replaces: W10233898) |
|
$ 80.88 | |||||
| 13 | W10348260 | Mount, Rh Gear (Replaces: W10233899) |
|
$ 80.91 | |||||
| 14 | W11245261 | Extr-glass Support (Replaces: 13048801) |
|
Immediately | $ 77.05 | ||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 12530505) |
|
Immediately | $ 155.96 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 12227303WD) |
|
$ 100.13 | |||||
| 18 | WP67005920 | Frame, Crisper (Replaces: 12802302) |
|
Immediately | $ 70.49 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822) |
|
Immediately | $ 201.12 | ||||
| 20 | 67001073 | Ladder, Center (Replaces: 12435807) |
|
$ 51.20 | |||||
| 21 | 12710602 | Ladder, Side |
|
- | |||||
| 24 | WPW10165870 | Glass, Pantry (Replaces: 12204820) |
|
$ 206.64 | |||||
| 25 | W10166785 | Trim, Pantry Glass (Replaces: 12655903) |
|
$ 89.29 | |||||
| 26 | WP12227302WD | Brace, Pantry (2) (Replaces: 12227301WD) |
|
$ 100.44 | |||||
| 27 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 28 | 12656902 | Gasket, Pantry |
|
- | |||||
| 29 | W10165876 | Housing, Control (Replaces: 13048301) |
|
$ 72.78 | |||||
| 30 | W10165882 | Slide, Control (Replaces: 13048401) |
|
$ 14.63 | |||||
| 31 | W11197396 | Endcap, Pantry (right) (Replaces: 13047701) |
|
Immediately | $ 48.45 | ||||
| 31 | W11197396 | Endcap, Pantry (left) (Replaces: 13047801) |
|
Immediately | $ 48.45 | ||||
| 32 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 7.71 | |||||
| 33 | WPW10235370 | Glide, Pantry (2) (Replaces: 13058101V) |
|
Immediately | $ 268.25 | ||||
| 34 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.54 | |||||
| 35 | W10165910 | Bar, Temp Cont. (Replaces: 13048201) |
|
$ 13.92 | |||||
| 36 | W11498983 | Knob, Control (Replaces: 12655204V) |
|
$ 27.58 | |||||
| 37 | W11513151 | Drawer, Pantry (Replaces: 13048501SP) |
|
Immediately | $ 125.16 | ||||
| 38 | W10827914 | Lid, Pantry (Replaces: 12656820) |
|
Immediately | $ 175.03 | ||||
| 39 | WPW10165967 | Divider, Pantry (Replaces: 13048601SP) |
|
Immediately | $ 45.67 |
