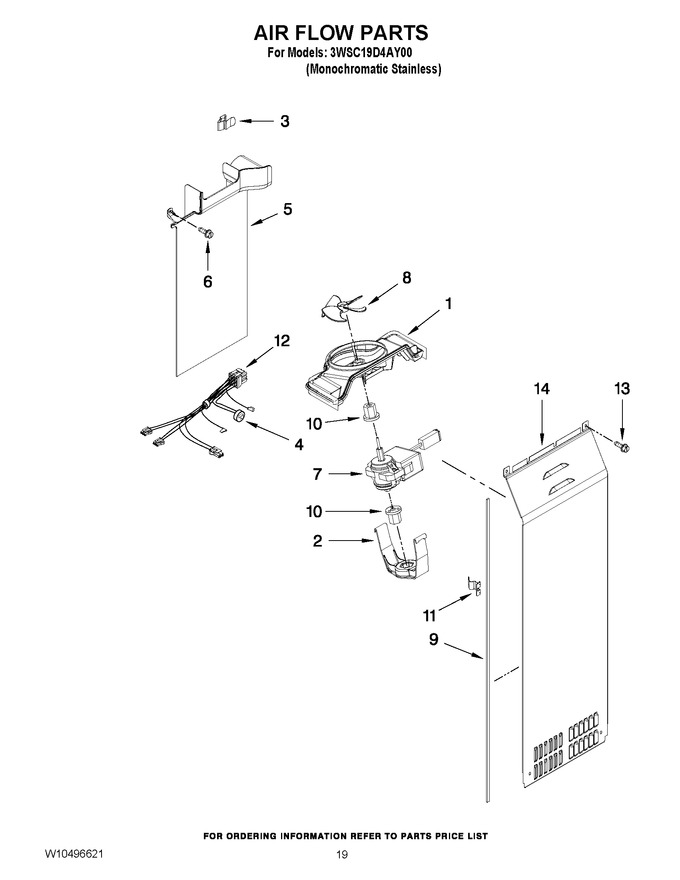

10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Fan Scroll   (Replaces: W10251462)				$ 27.63
2	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 21.60
3	W10331728		Clip, Air Duct				$ 73.07
4	W11590570		Bi-metal, Defrost   (Replaces: W10260440)		Appelez-nous	-
5	W10251474		Air Duct Freezer		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 7.36
7	W10378923		Fan Motor		Appelez-nous	-
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.34
11	W11232019		Clip, Mounting   (Replaces: W10274578)			Immediately	$ 10.25
12	W10859317		Harness, Fan Evaporator (includes No.4)   (Replaces: W10193316)		Appelez-nous	-
13	WP693995		Screw, Evap Cover   (Replaces: W10142292)			Immediately	$ 6.80
14	WPW10388268		Cover, Evaporator (includes No.9)   (Replaces: W10388268)				$ 230.78
