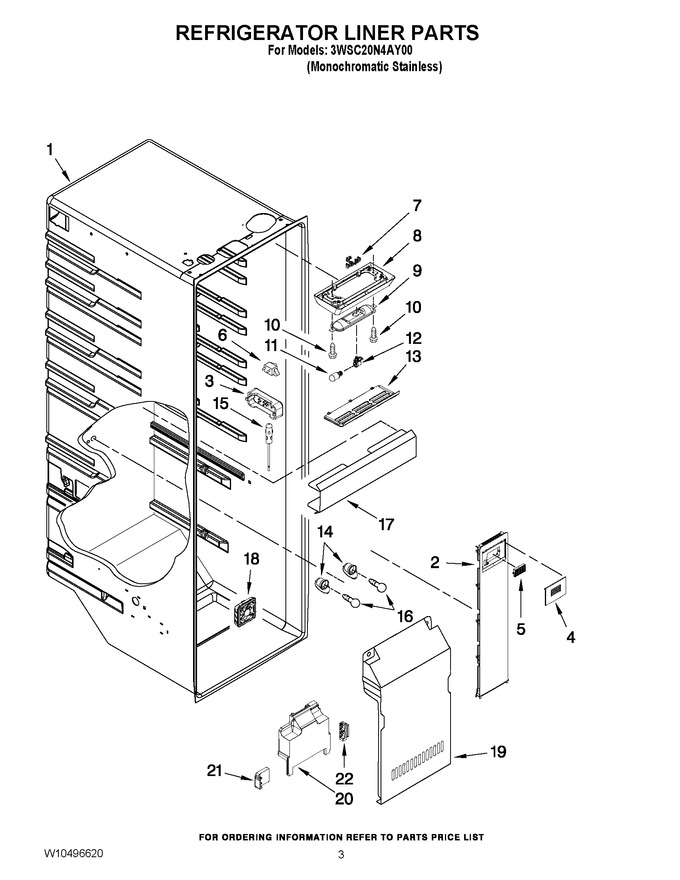

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10425172		Cover, Air Tower		Appelez-nous	-
3	WPW10425252		Cover, Thermistor   (Replaces: W10425251)			Immediately	$ 79.54
4	W10321024		Air Filter Cover		Appelez-nous	-
5	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 12.91
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 35.18
7	W10279406		Wire Assy, Top Light		Appelez-nous	-
8	W10280178		Trim, Light		Appelez-nous	-
9	2223680		Shield, Heat				$ 84.17
10	WP3400906		Screw   (Replaces: W10141632)				$ 8.15
11	W11618980		Light Bulb   (Replaces: W10173035)				$ 20.18
12	W11661565		Socket, Light   (Replaces: W10130033)			Immediately	$ 32.24
13	W10280420		Lens, Top Light				$ 96.43
14	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 12.48
15	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
16	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
17	W10389239		Lens, Light		Appelez-nous	-
18	W10451901		Fan Assy - Evap   (Replaces: W10360454)				$ 243.13
19	WPW10387382		Cover, Evap   (Replaces: W10387382)				$ 220.54
20	W11105244		Evap Insulation, W/fan Assy   (Replaces: W10418398)		Appelez-nous	-
21	W11028224		Support, Evap Lh   (Replaces: W10223366)				$ 10.78
22	W10837626		Support, Evap Rh   (Replaces: W10223364)				$ 68.27
