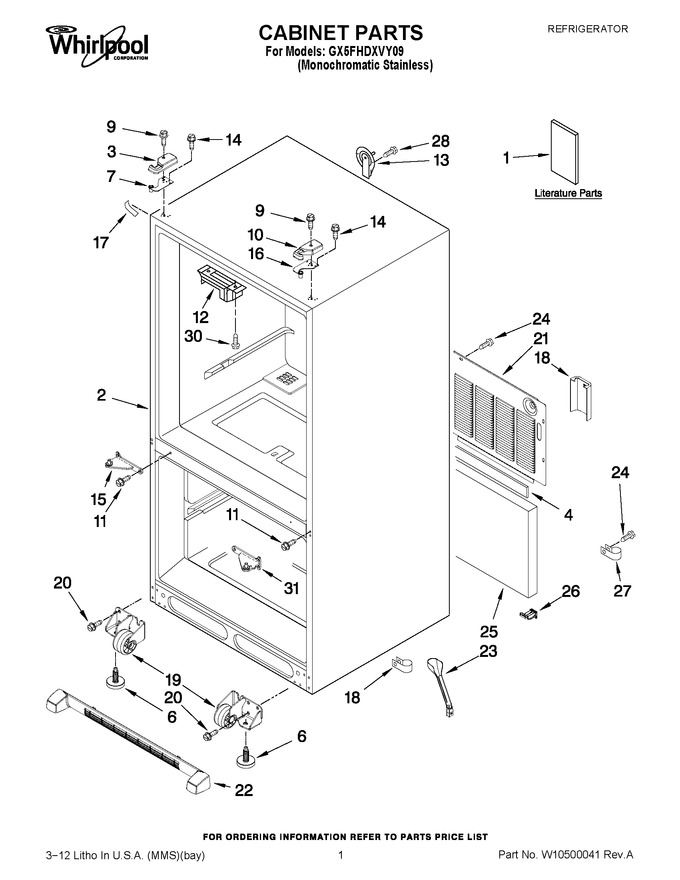

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366204 | Use & Care Guide |
|
- | |||||
| 1 | W10475389 | Tech Sheet |
|
- | |||||
| 1 | W10187810 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337648 | Cover, Left Hinge (apollo Grey) (Replaces: 12962301AP) |
|
$ 20.81 | |||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | W11592375 | Hinge, Left Top (Replaces: 12963204ED) |
|
$ 28.73 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | WPW10191117 | Cover, Right Hinge (apollo Grey) (Replaces: 12962302AP) |
|
$ 20.75 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10917988 | Hinge, Center (lt) (apollo Grey) (Replaces: 13000001AP) |
|
Immediately | $ 86.07 | ||||
| 16 | W11592374 | Hinge, Right Top (Replaces: 12963205ED) |
|
Immediately | $ 28.71 | ||||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W10208592 | Guard, Water Valve |
|
- | |||||
| 19 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | W10211854 | Cover, Unit |
|
$ 160.53 | |||||
| 22 | WPW10534155 | Grille, Toe (apollo Grey) (Replaces: W10244558N) |
|
Immediately | $ 107.60 | ||||
| 23 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 24 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 25 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 26 | W10216614 | Sweep, Water Valve |
|
$ 18.51 | |||||
| 27 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 28 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 30 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 7.52 | ||||
| 31 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces: 13000002AP) |
|
Immediately | $ 86.07 |
