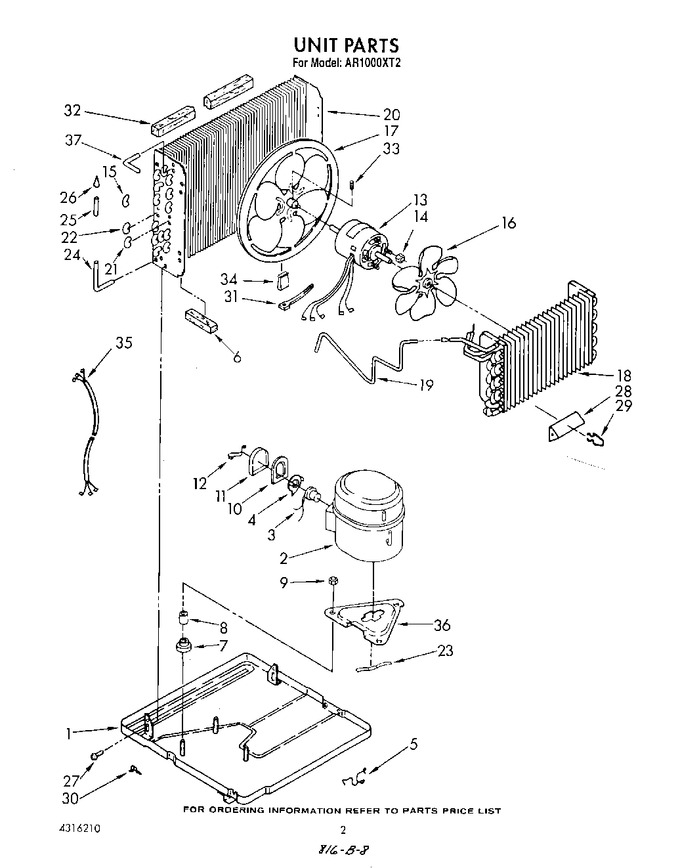

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858949		Base		Appelez-nous	-
2	484395		Compressor		Appelez-nous	-
3	WP1161170		Overload   (Replaces: 949453)				$ 84.72
4	994171		Spring, Overload		Appelez-nous	-
5	949634		Clip, Mtg. (2)		Appelez-nous	-
6	WP854334		Seal, Condenser   (Replaces: 859600)				$ 12.55
7	469581		Grommet, Compressor Mtg.		Appelez-nous	-
8	858148		Sleeve,		Appelez-nous	-
9	858121		Nut, Lock (3) Compressor Mtg.		Appelez-nous	-
10	647154		Gasket, Terminal Cover		Appelez-nous	-
11	647152		Cover, Terminal		Appelez-nous	-
12	643299		Retainer, Terminal Cover		Appelez-nous	-
13	948835		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
15	855457		Bend, Return		Appelez-nous	-
16	998090		Blade, Fan (evaporator)		Appelez-nous	-
17	998093		Blade, Fan (condenser)		Appelez-nous	-
18	949602		Evaporator		Appelez-nous	-
19	949600		Tube, Restrictor		Appelez-nous	-
20	949437		Condenser		Appelez-nous	-
21	855199		Bend, Return Condenser (4)		Appelez-nous	-
22	854624		Bend, Return Condensor (16)		Appelez-nous	-
23	643179		Spring, Plate		Appelez-nous	-
24	859200		Tube, 90~ Connect		Appelez-nous	-
25	484230		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	WP489069		Screw, 8 X 1/2 (7)   (Replaces: 488480)			Immediately	$ 7.56
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	855930		Clamp, Tube		Appelez-nous	-
31	852451		Tie, Cable		Appelez-nous	-
32	948090		Seal, Condenser Top		Appelez-nous	-
33	595085		Setscrew, 5/16-24 X 1/4		Appelez-nous	-
34	876034		Clip, Fan Balancing		Appelez-nous	-
35	484136		Harness, Wiring		Appelez-nous	-
36	644356		Plate, Compressor		Appelez-nous	-
37	947612		Tube, Connect		Appelez-nous	-
	LIT1156761		Guide, Energy		Appelez-nous	-
	LIT1155974		Installation, Instructions		Appelez-nous	-
	LIT950677		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT4316210		List, Repair Parts		Appelez-nous	-
	LIT1156767		Guide, Operation		Appelez-nous	-
