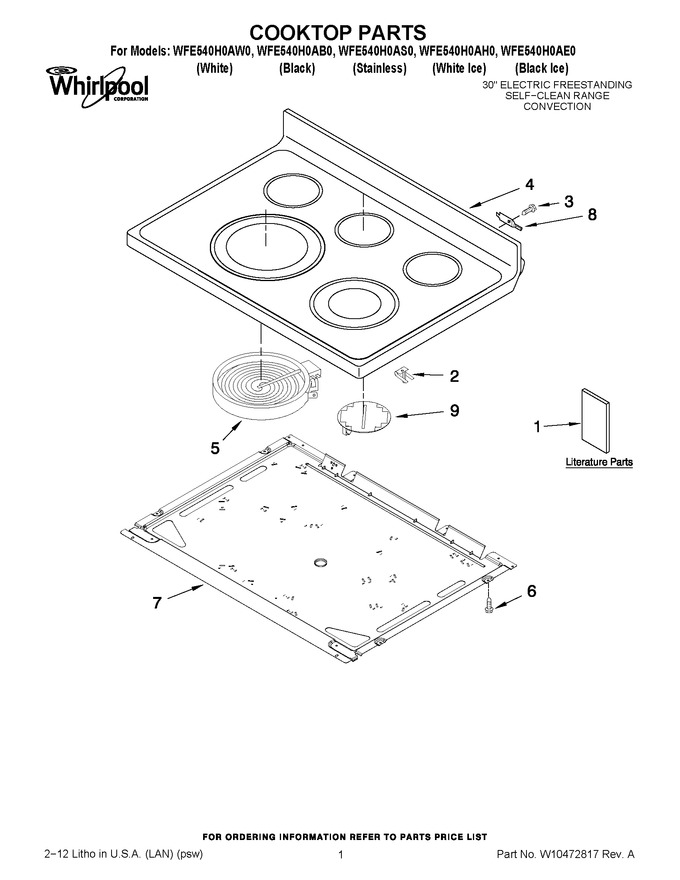

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions Installations |
|
- | |||||
| 1 | W10392930 | Owners Manual |
|
- | |||||
| 1 | W10392959 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10472036 | Cooktop (white) (Replaces: W10380664) |
|
Immediately | $ 615.55 | ||||
| 4 | W10472035 | Cooktop (black) (Replaces: W10380665) |
|
Immediately | $ 627.88 | ||||
| 5 | WPW10189281 | Element, Surface (3000w Dual - Lf) (Replaces: W10189281) |
|
Immediately | $ 339.79 | ||||
| 5 | W11171119 | Element, Surface (1200 W - Lr & Rr) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 5 | W11517959 | Element, Surface (3000w - Rf) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 129.14 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 9 | W11047668 | Element, Warm Zone (Replaces: W10388271) |
|
$ 119.66 |
